Audio-Technica AT-VM95E - INKL HEADSHELL

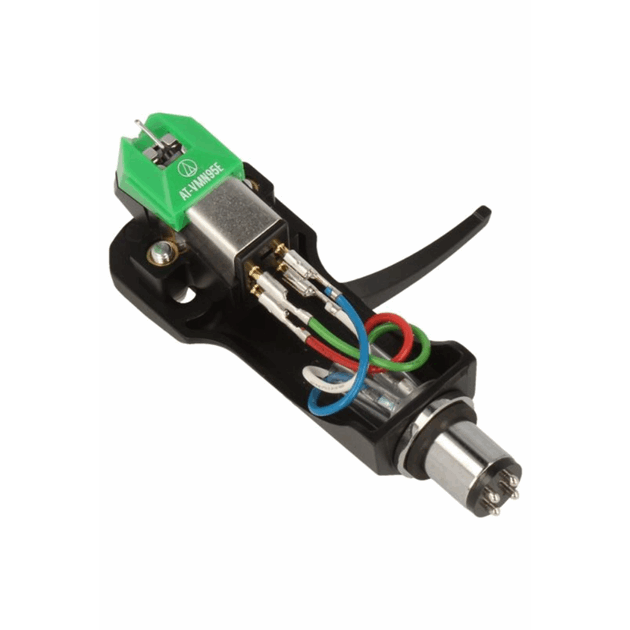

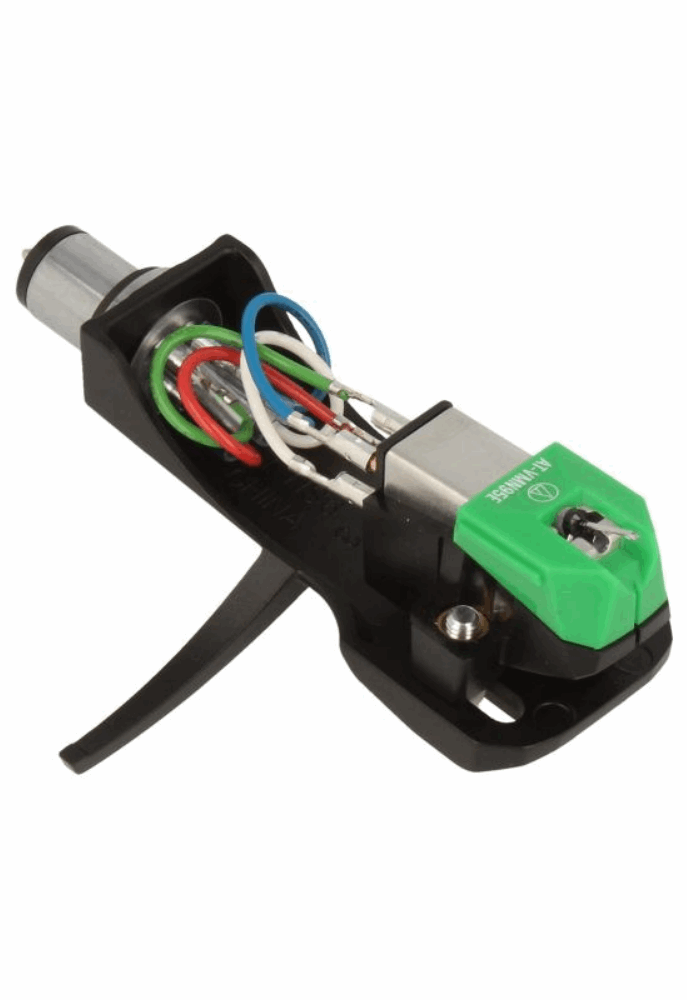

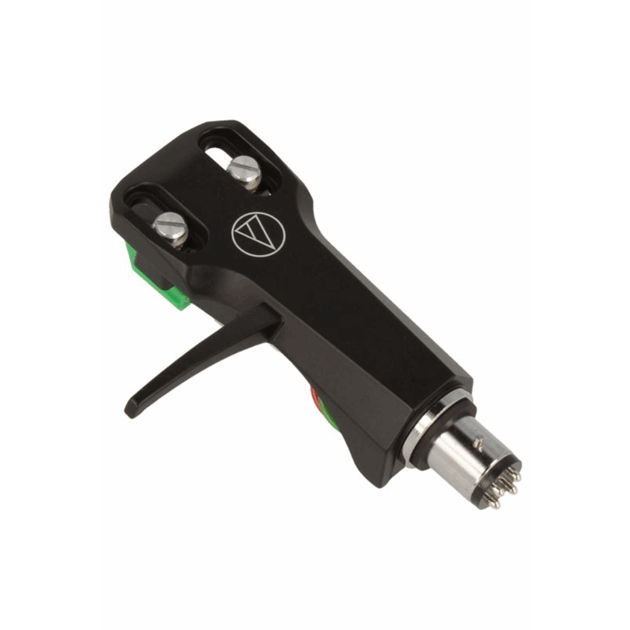

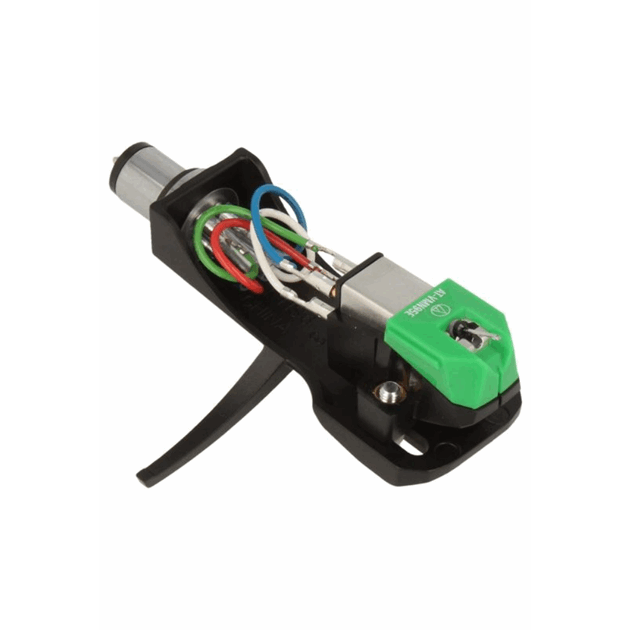

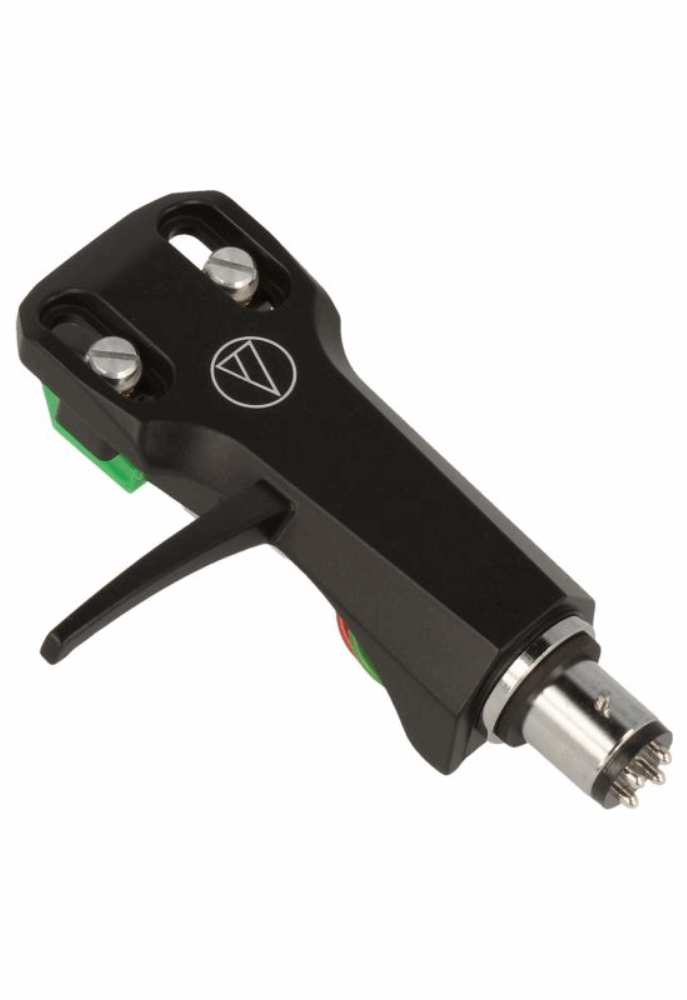

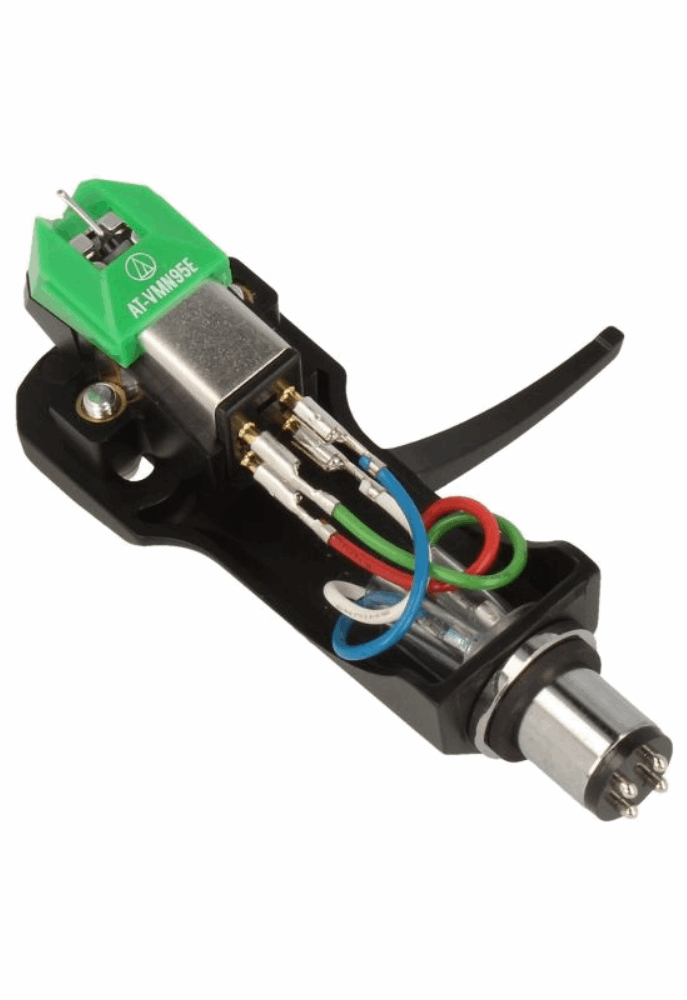

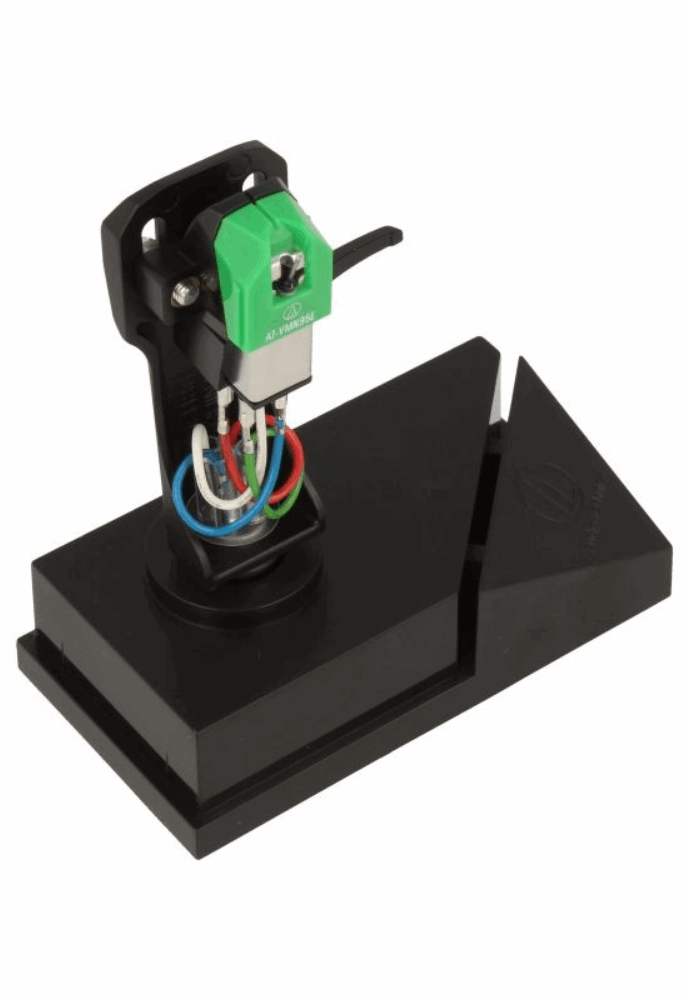

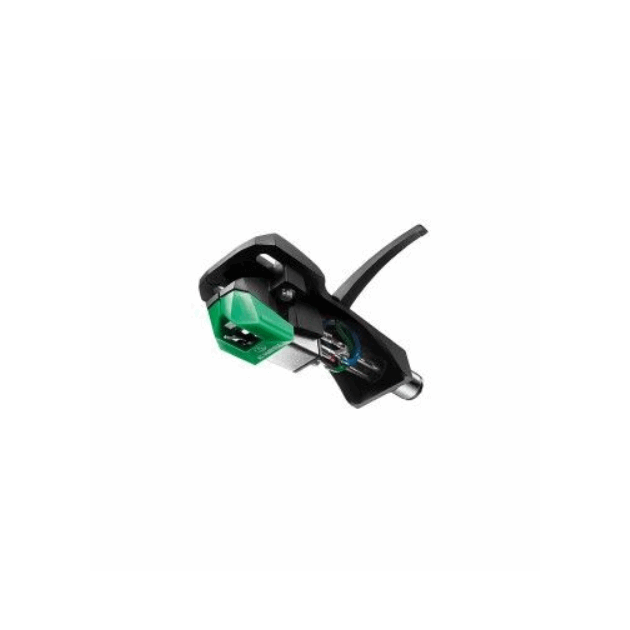

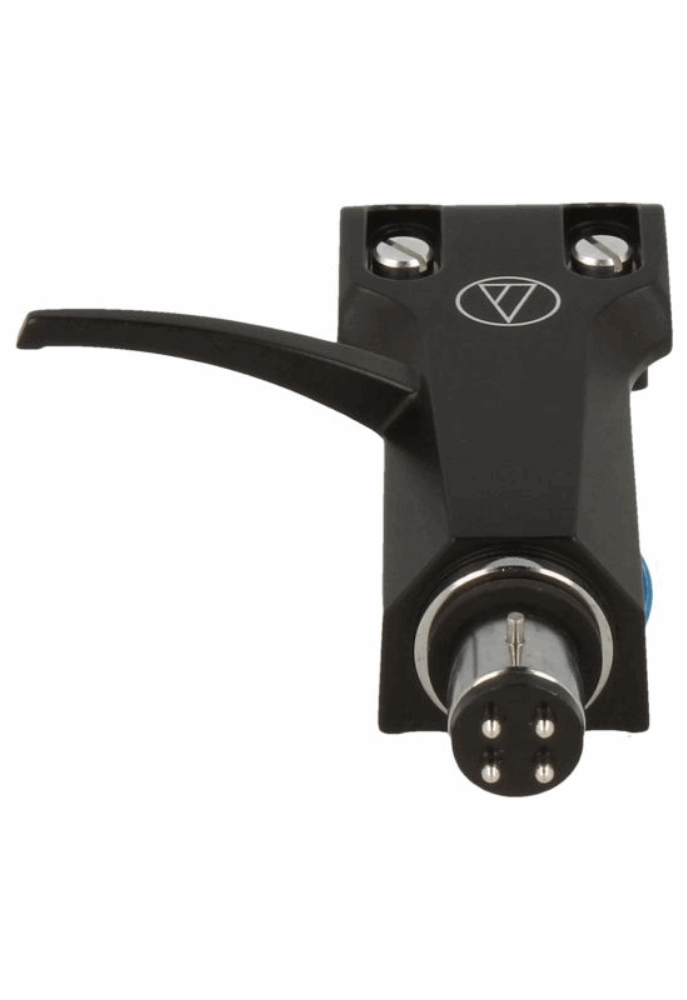

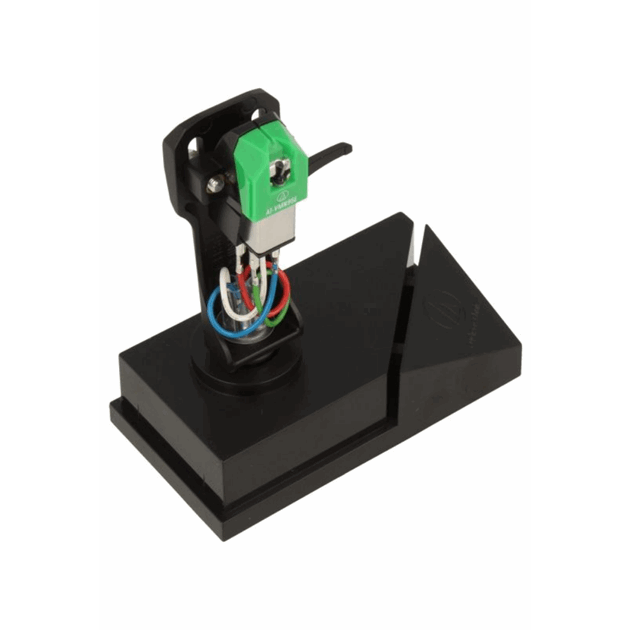

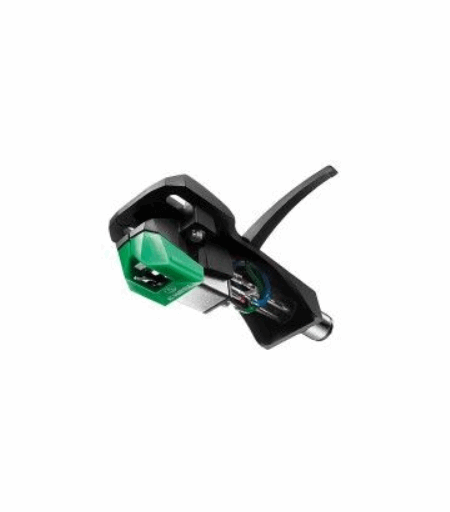

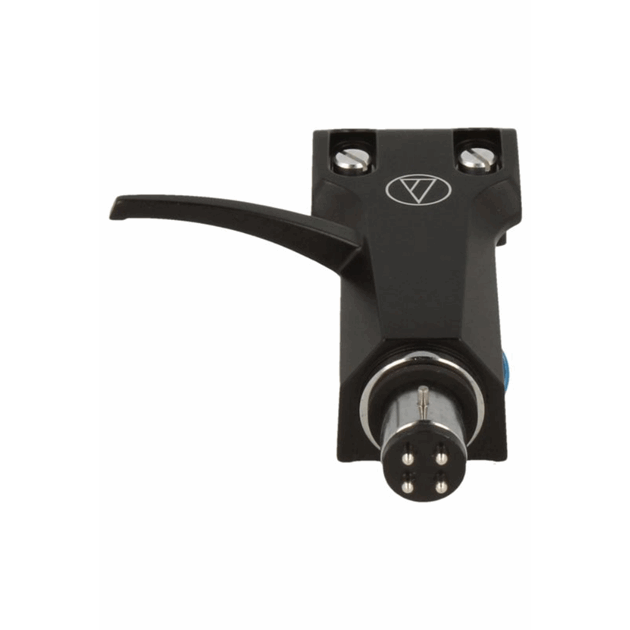

AT-VM95E mounted on AT-HS6BK headshell
The total set weight is 15.5g
Assembled and tested in the Audio-Technica Factory in Fukui-Japan
?
Next generation of the critically acclaimed AT95E Cartridge developed in Japan with nearly 40 years of research and development
Features an improved output level, dynamic range, frequency response, and transient response
Aluminium cantilever and 0.3 x 0.7 mil bonded elliptical stylus reproduces superior sound experience
New coil design for increased output voltage (4 mV) compared to AT95 and AT95EX
Threaded inserts in cartridge body enable cartridge to be mounted to headshell or integral tonearm with just two screws – no nuts or bolts.
| Model |
AT-VM95E |
| Type |
VM Stereo Dual Magnet |
| Mounting |
1/2” centres |
| Frequency Response |
20 - 22,000 Hz |
| Channel Separation |
20 dB (1 kHz) |
| Output Channel Balance |
2.0 dB (1 kHz) |
| Output Voltage |
4.0 mV (@ 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle |
23° |
| Vertical Tracking Force Range |
1.8 - 2.2g (standard 2.0 g) |
| Stylus Shape |
Elliptical |
| Stylus Size |
0.3 x 0.7 mil |
| Stylus Construction |
Bonded Round Shank |
| Cantilever |
Aluminium Pipe |
| Coil Impedance |
3.3 kO (1 kHz) |
| Coil Inductance |
550 mH (1 kHz) |
| DC Resistance |
485 O |
| Static Compliance |
17 x 10 – 6 cm / dyne |
| Dynamic Compliance |
7 x 10 – 6 cm / dyne (100 Hz) |
| Wire Used for Coil |
T.P. Copper |
| Recommended Load Impedance |
47,000 O |
| Recommended Load Capacitance |
100-200 pF |
| Cartridge Weight |
6.1g |
| Dimensions |
17.2 x 18.9 x 28.3 ( H x W x D mm) |
| Replacement Stylus |
AT-VMN95E |
