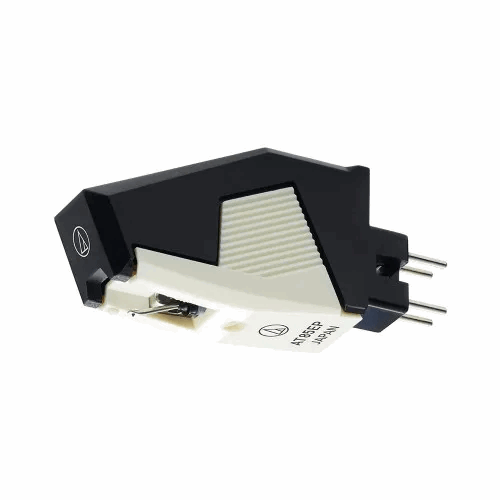

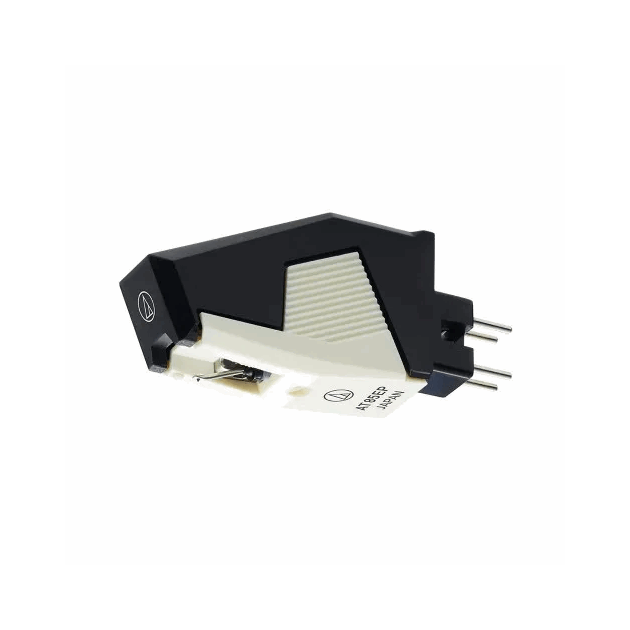

Audio-Technica -P-Mount Moving Magnet Cartridge, Elliptical

Audio-Technica -P-Mount Moving Magnet Cartridge, Elliptical

Designed specifically for the linear format, the AT85EP features Audio-Technica’s unique dual moving magnet construction. The dual magnet system is combined with the para-toroidal coil construction to assure an excellent sonic clarity and wide channel separation.

• 0.3 x 0.7 mil elliptical stylus
• Aluminium Pipe Cantilever
• Elliptical bonded diamond stylus

• Frequency Response 20 - 20,000 Hz
• Channel Separation 20 dB at 1kHz
• Vertical Tracking Angle 20°
• Stylus Construction Bonded Round Shank
• Recommended Load Impedance 47,000 ohms
• Coil Inductance 400mH (1 kHz)
• Output Voltage 3.5 mV (mV at 1 kHz, 5 cm/sec)
• Output Channel Balance 2.0 dB
• Stylus Shape Elliptical
• Cantilever Aluminium
• Pipe Mounting P-mount
• Dimensions H10.0×W15.3×D35.1 mm
• Recommended Load Capacitance 100-200 pF
• Replacement Stylus ATN85EP
• Stylus Size 0.3 x 0.7 mil
• Type Dual Magnet
• Weight 6.0g

P-mount Dual Moving Magnet cartridge with elliptical bonded stylus
The AT85EP allows owners of Technics™, Hitachi™, Pioneer™* and similar linear tracking turntables with T4P plug-in connectors to enjoy the high-fidelity sound that only Audio-Technica can offer.

Kompatibel med følgende Technics modeller:

PANASONIC/TECHNICS MODELS SL-BD26 SLBD26 SL-BL3 SLBL3 SL-BL3 SLBL3 SL-D30 SLD30
PANASONIC/TECHNICS NEEDLES EPS-71CS EPS71CS EPS-91SMAD EPS91SMAD EPS-91STSD EPS91STSD
PANASONIC/TECHNICS CARTRIDGES EPC-91SMAD EPC91SMAD

Kompatibel med følgende Pioneer modeller:

PIONEER NEEDLES PN-250T PN-295T PN-305T
> PIONEER CARTRIDGES PC-250T PC-295T PC-305T
> PIONEER MODELS AV300 AV900 COMPO MIDI-S1095 MIDIS1095 MIDI-S1100CD MIDIS1100CD MIDI-S4300CD MIDIS4300CD MIDI-S4400CD MIDIS4400CD MIDI-S6600CD MIDIS6600CD PERSONA-S330 PERSONAS330 PETREL-100 PETREL100 PL-111Z PL111Z PL-200Z PL200Z PL-201Z PL201Z PL-2002 PL2002 PL-450 PL450 PL-221Z PL221Z PL-333Z PL333Z PL-405 PL405 PL-450 PL450 PL-470 PL470 PL-555Z PL555Z PL-560 PL560 PL-570 PL570 PL-660 PL660 PL-760 PL760 PL-770 PL770 PL-960 PL960 PL-970 PL970 PL-L30 PLL30 PL-X300 PLX300 PL-X303 PLX303 PL-X33Z PLX33Z PL-X505 PLX505 PL-X55 PLX55 PL-X21Z PLX21Z PL-X505 PLX505 PL-X660 PLX660 PL-X960 PLX960 PL-Z505 PLZ505 PL-Z552 PLZ552 PL-Z600 PLZ600 PL-Z800 PLZ800 PL-660 PL660 PRO600 S-1095 S1095 S-4300 S4300 S-1100CD S1100CD S-4400CD S4400CD S-6600CD S6600CD S-100 S100 S-200 S200 S-350RC S350RC SERIES-X1500 SERIESX1500 SERIES-X2500 SERIESX2500 SERIES-X3500 SERIESX3500 SERIES-XA55 SERIESXA55 SYSCOM-X9900AV SYSCOMX9900AV SYSTEM-V7 SYSTEMV7 SYSTEM-XA11 SYSTEMXA11 SYSTEM-XA33 SYSTEMXA33 SYSTEM-XA55 SYSTEMXA55 X-2500 X2500 X-3500 X3500 X-9900 X9900 XA-700 XA700 XA-707 XA707

Kompatibel med følgende Hitachi modeller:

HITACHI MODELS 17 L33 2000TV 4100CV 5100 9211 9310 9333 9341 HT07 HT 102 HT2 HT-6 HT6 HT-L33 HTL33 HT-L55 HTL55 HT-101 HT101 HT-202 HT202 HT-303 HT303 HT-12 HT12 HT-L303 HTL303 LEADERSYSTEM MT-14 MT14 RKG7200 STANDARDSYSTEMD SYSTEM101 SYSTEM12 SYSTEM2 SYSTEM202 SYSTEM37 SYSTEM37W SYSTEM5028 SYSTEM5035 SYSTEM5035M SYSTEM57 SYSTEM7 SYSTEM9 SYSTEM9W SYSTEMW500 T-53 T53
> HITACHI NEEDLES DS-ST-12 DSST12 DS-ST-14 DSST14 DS-ST14R DSST14R HT-12 HT12 ST-18E ST18E DS-ST18 DSST18
> HITACHI CARTRIDGES RT-8500 MT-18 RT8500 MT18 MT-12 MT12 MT-14 MT14
> HiTec 103

Også kompatibel med:

> AKAI CARTRIDGES PC-33 PC33
> AUDIO TECHNICA CARTRIDGES AT-80 AT80 Z100X 1001 1001P 1-LT 1LT 1/LT 1/LT(TAN) 11-LT 11LT 11/LT 20E-U(TAN) 20EU(TAN) 21E/U(TAN) 30E-U 30EU 30E/U(TAN) 40LC-U(TAN) 40LCU(TAN) 40LC/U(TAN) AT-111E/U AT111E/U AT-112E/U AT112E/U AT-113LC/U AT113LC/U AT-2000XE AT2000XE AT-250 AT250 AT-250G AT250G AT-3472L AT3472L AT-3472P AT3472P AT-450 AT450 AT-460LC/U AT460LC/U AT-5000SE AT5000SE AT-733 AT733 AT-9GE/U AT9GE/U AT-99S/U AT99S/U AT-LT1 ATLT1 AT-U4000 ATU4000 AT-U4020EP (TAN) ATU4020EP (TAN) AT-U4030LC (TAN) ATU4030LC (TAN) AT-UPM ATUPM DB74E DB83E DC40P HR101E/U HR201E/U HR301E/U HR401LC/U I/LT II-LT (TAN) IILT (TAN) II/LT PK29P PK29PC SERIESI SERIESIII SERIESV SERIESVII SERIESVIII SS221/U SS331E/U SS441E/U SS551LC/U TC216EP TC226EP TC236EP TC246LP TM1 TM3 TM5 TM7 TM8 TMN-1 TMN1 TMN-3 TMN3 TMN-8 TMN8 TR421U TR431U TR441U TR451U USA5 USA7 USA9 2002 AT-112E AT112E AT-112U AT112U AT-90 AT90 AT-92E AT92E AT-N-92E ATN92E P310180 Z-100E Z100E AT-3482P AT3482P AT-3472EP AT3472EP AT-3101P AT3101P 2003 2002
AUDIO TECHNICA STUDIO REFERENCE SERIES 3003 6006 8008
> AUDIO TECHNICA NEEDLES AT3472BE ATN-101P ATN101P ATN-101EP ATN101EP ATN-3472 ATN3472 ATN-3472P ATN3472P ATN-3472EP ATN3472EP ATN-3492 ATN3492 ATN-81 ATN81 ATN-82E ATN82E ATN-90 ATN90 ATN-92E ATN92E AT250G TC246LT ATS-3003 ATS3003
> CEC Needles N-103 N103
> DIGITAL RESEARCH DR200E DR300E DR350E DR400E
> DUAL CARTRIDGES MMP-450 MMP450
> DUAL MODELS CST3510 HIFI1320 HIFI3510 MIDI3510
> DUAL NEEDLES DN-450 DN450
> EVG NEEDLES PM2315D 2310DE PM2311DE
> FISHER MODELS AVS2386 HT-2 HT2 HT-6 HT6 HT-12 HT12 HT-17 HT17 STANDARDSYSTEMD SYSTEM101 SYSTEM202 SYSTEM12 SYSTEM2 SYSTEM37 SYSTEM57 SYSTEM5028 SYSTEM5028M SYSTEM5035 SYSTEM5035M SYSTEM7 SYSTEM9 SYSTEM9W SYSTEMW500 T53 T53L
> FISHER NEEDLES 4-156T-03600 4156T03600 ATN3472PS ST-44J ST44J ST-44J ST44J ST-M11 STM11
> HITACHI MODELS 17 L33 2000TV 4100CV 5100 9211 9310 9333 9341 HT07 HT 102 HT2 HT-6 HT6 HT-L33 HTL33 HT-L55 HTL55 HT-101 HT101 HT-202 HT202 HT-303 HT303 HT-12 HT12 HT-L303 HTL303 LEADERSYSTEM MT-14 MT14 RKG7200 STANDARDSYSTEMD SYSTEM101 SYSTEM12 SYSTEM2 SYSTEM202 SYSTEM37 SYSTEM37W SYSTEM5028 SYSTEM5035 SYSTEM5035M SYSTEM57 SYSTEM7 SYSTEM9 SYSTEM9W SYSTEMW500 T-53 T53
> HITACHI NEEDLES DS-ST-12 DSST12 DS-ST-14 DSST14 DS-ST14R DSST14R HT-12 HT12 ST-18E ST18E DS-ST18 DSST18
> HITACHI CARTRIDGES RT-8500 MT-18 RT8500 MT18 MT-12 MT12 MT-14 MT14
> HiTec 103
> JVC CARTRIDGES DT-45 DT45 L-E33 LE33 MD-1045 MD1045 DT-57 DT57 JVC MODELS AL-F30 ALF30 AL-L20R ALL20R AL-L20RBK ALL20RBK F-FX2B FFX2B F-FX22B FFX22B G-X2B GX2B G-X3B GX3B G-X3B GX3B G-X444 GX444 G-X555 GX555 G-X4B GX4B G-X4BW GX4BW L-E22 LE22 L-E23 LE23 L-E50 LE50 L-E50B LE50B L-E22 LE22 L-50 L50 L-L1 LL1 L-E33 LE33 L-E88 LE88 L-FX2B LFX2B L-FX2B LFX2B L-FX22B LFX22B L-L1 LL1 L20RBK L-E88 LE88 MIDI-E22 MIDIE22 MIDI-E50 MIDIE50 MIDI-X9 MIDIX9 PC-W330 PCW330 PC-W88 PCW88 PCX20 QL-L2 QLL2 QL-L20 QLL20 QL-L20B QLL20B QL-S90B QLS90B STYLISTIC-GX2B STYLISTICGX2B STYLISTIC-GX3B STYLISTICGX3B STYLISTIC-GX4R STYLISTICGX4R
> JVC NEEDLES DT-45 DT45 DT-45E DT45E DT-45B DT45B
> KENWOOD CARTRIDGES V-63 V63 V-65 V65
> KENWOOD MODELS KD-54 KD54 KD-64FCL KD64FCL KD44 KD64 KD744 KD54 KD54R KD64 KX-64 KX64 SPECTRUM-64B SPECTRUM64B SPECTRUM-74B SPECTRUM74B SPECTRUM-744B SPECTRUM744B SYSTEM-54B SYSTEM54B
> KENWOOD NEEDLES N-63 N63
> MAGNAVOX NEEDLES 5604370060 5604370112
> MAGNOVOX MODELS FP1463
> MARANTZ CARTRIDGES X500 X515 X515-CD X515CD XDX112CD XDX1355CD XDX1705CD
> MARANTZ NEEDLES TT-140 TT140 TT-240 TT240 TT-430 TT430 XTT-140 XTT140 XTT-240 XTT240
> MGA MODELS ATN3472P TP660
> MGA NEEDLES ST-18 ST18 3D-56M 3D56M 3D-57M 3D57M
> PANASONIC/TECHNICS MODELS SL-BD26 SLBD26 SL-BL3 SLBL3 SL-BL3 SLBL3 SL-D30 SLD30
> PANASONIC/TECHNICS NEEDLES EPS-71CS EPS71CS EPS-91SMAD EPS91SMAD EPS-91STSD EPS91STSD
> PANASONIC/TECHNICS CARTRIDGES EPC-91SMAD EPC91SMAD
> PIONEER NEEDLES PN-250T PN-295T PN-305T
> PIONEER CARTRIDGES PC-250T PC-295T PC-305T
> PIONEER MODELS AV300 AV900 COMPO MIDI-S1095 MIDIS1095 MIDI-S1100CD MIDIS1100CD MIDI-S4300CD MIDIS4300CD MIDI-S4400CD MIDIS4400CD MIDI-S6600CD MIDIS6600CD PERSONA-S330 PERSONAS330 PETREL-100 PETREL100 PL-111Z PL111Z PL-200Z PL200Z PL-201Z PL201Z PL-2002 PL2002 PL-450 PL450 PL-221Z PL221Z PL-333Z PL333Z PL-405 PL405 PL-450 PL450 PL-470 PL470 PL-555Z PL555Z PL-560 PL560 PL-570 PL570 PL-660 PL660 PL-760 PL760 PL-770 PL770 PL-960 PL960 PL-970 PL970 PL-L30 PLL30 PL-X300 PLX300 PL-X303 PLX303 PL-X33Z PLX33Z PL-X505 PLX505 PL-X55 PLX55 PL-X21Z PLX21Z PL-X505 PLX505 PL-X660 PLX660 PL-X960 PLX960 PL-Z505 PLZ505 PL-Z552 PLZ552 PL-Z600 PLZ600 PL-Z800 PLZ800 PL-660 PL660 PRO600 S-1095 S1095 S-4300 S4300 S-1100CD S1100CD S-4400CD S4400CD S-6600CD S6600CD S-100 S100 S-200 S200 S-350RC S350RC SERIES-X1500 SERIESX1500 SERIES-X2500 SERIESX2500 SERIES-X3500 SERIESX3500 SERIES-XA55 SERIESXA55 SYSCOM-X9900AV SYSCOMX9900AV SYSTEM-V7 SYSTEMV7 SYSTEM-XA11 SYSTEMXA11 SYSTEM-XA33 SYSTEMXA33 SYSTEM-XA55 SYSTEMXA55 X-2500 X2500 X-3500 X3500 X-9900 X9900 XA-700 XA700 XA-707 XA707
> RECOTON 171S-969 171S969
> RADIO SHACK NPS-1139 10074219
> SANSUI NEEDLES SN-515 SN-P313 SN-P515 SN-P323 SN515 SNP313 SNP515 SNP323
> SANSUI CARTRIDGES SC-P313 SCP313 SV-P313 SV-P515 SVP313 SVP515 SV-313 SV313
> SANSUI MODELS 1540 2040 340 540 3540 3660 430 430 900 1400 AW4000 AV340 AV660 BLACK MAC COMPOE500 D21 D31 GX-710 GX710 GX-909 GX909 GX-710 GX710 GX-909 GX909 HG-550 HG550 HG550 HG550A SYSTEM1150 IS-700 IS700 IS-10 IS10 IS-B ISB IS-30 IS30 IS-D ISD IS-70 IS70 IS-C ISC IS-108 IS108 IS-30D IS30D IS-70C IS70C IS-1100 IS1100 IS-119 IS119 IS-159 IS159 IS-159 IS159 IS-20 IS20 IS-440 IS440 IS-550 IS550 IS-330 IS330 IS-41 IS41 IS-61 IS61 IS-650 IS650 IS-950 IS950 IS-66 IS66 IS-69 IS69 IS-88 IS88 IS-89 IS89 IS-70 IS70 IS-90C IS90C 1S110D 110E IS-950 IS950 IS500 IS700 IS750 IS500 IS5700 IS5900 IS51100 M-500 M500 M-55 M55 MIDISYSTEMM330W NIDISYSTEMM500 P-D 21 PD 21 P-0 30 P0 30 P-D11 PD11 P-D15 PD15 P-D21 PD21 P-D11 PD11 P-D15 PD15 P-D21 PD21 P-D31 PD31 P-E 300 PE 300 P-E350 PE350 P-L15 PL15 P-L35 PL35 P-L15 PL15 P-L35 PL35 P-L45 PL45 P-L55 PL55 P-L35 PL35 P-L45 PL45 P-L55 PL55 P-L41 PL41 P-LM50 PLM50 P-LM55 PLM55 PL-51 PL51 PL-55 PL55 P-L75 PL75 P-M70 PM70 P-M330 PM330 P-M40 PM40 P-M330 PM330 P-M500C PM500C P-M700 PM700 PL51 SYSTEM240 SYSTEM1040 TP240 TP340
> SANYO MODELS 1644 1664 1689 1876 1960B 400 600 580 685 960A ARTISANI960 AV3540 AV3660 AV4000 AV5000 AV540 AV660 AV3000 MG-44S MG44S MIDIW34 MIDIWW38 P-30 P30 P-36 P36 P-38 P38 RCSYSTEMS SYSTEM1540 SYSTEM1556 SURROUNDSOUND SYSTEM1689 SYSTEM19608 SYSTEM200 SYSTEM250 SYSTEM300 SYSTEM400 SYSTEM500 SYSTEM600 SYSTEM685 SYSTEM688 SYSTEMAV6CD SYSTEMAV12CD SYSTEM1660 SYSTEM1664 SYSTEM1667 SYSTEM1760 SYSTEM1876 SYSTEM1877 SYSTEM240 SYSTEM246 SYSTEM266 SYSTEM340 SYSTEM346 SYSTEM540 SYSTEM566 SYSTEM660 SYSTEM667 SYSTEM687 SYSTEM760 SYSTEM960 SYSTEM1040 SYSTEM1040CD SYSTEM1660 SYSTEM1666 SYSTEM1664 SYSTEM1760 SYSTEM1187 SYSTEM1876 SYSTEM1960B SYSTEMl760B SYSTEM2040 SYSTEM226W SYSTEM234 SYSTEM266 SYSTEM240 SYSTEM340 SYSTEM266 SYSTEM336 SYSTEM336CD SYSTEM366 SYSTEM366CD SYSTEM366 SYSTEM363 SYSTEM377 SYSTEM5 SYSTEM540 SYSTEM566 SYSTEM566CD SYSTEM566R SYSTEM6110 SYSTEM6120 SYSTEM6150 SYSTEM664 SYSTEM687 SYSTEM760 SYSTEM760CD SYSTEM760 SYSTEM960R SYSTEM960 SYSTEM960A SYSTEMP36 SYSTEMRC SYSTEMW10 TP-226 TP226 TP-240 TP240 TP-266 TP266 TP-340 TP340 TP-366 TP366 TP-420 TP420 TP-430 TP430 TP-440 TP440 TP-477 TP477 TP-566 TP566 TP-6100 TP6100 TP-6110 TP6110 TP-6120 TP6120 TP-750 TP750 TP-760 TP760 TP-240 TP240 TP-246 TP246 TP-266 TP266 TP-346 TP346 TP-430 TP430 TP-580 TP580 TP-685 TP685 TP-687 TP687 TP-688 TP688 TP-689 TP689 TP-760 TP760 TP-877 TP877 TP-960 TP960 TP-V12 TPV12 TP-V6 TPV6 TP-V6CD TPV6CD TP-240 TP240 TP-340 TP340 TP-420 TP420 TP-430 TP430 V8 V12 V16 W10 ZSYSTEM234 ZSYSTEM236 ZSYSTEM236W
> SANYO CARTRIDGES TP-266 MG-M11 ATN3472PS ATN3472PS ATN3473PS ATN3473PS STM11 STM11 TPF8 TPF8 TP266 MGM11 MG-44J MG44J
> SANYO NEEDLES ATN-3472PS ATN3472PS ATN-3473PS ATN3473PS ST-M11 STM11 TP-F8 TPF8 ST-103D
> SCOTT MODELS BERKELEY90 BOSTON200 CAMBRIDGE65 CAPECOD50 CONCORD25 GLOUCESTER70 LEXINGTON40 LINEAR PS-49A PS49A PS-69A PS69A PS-69Q PS69Q PS-89 PS89 PS-99 PS99 PS-49A PS49A PS-69A PS69A PS-89 PS89 PS-100 PS100 SALEM45 SLIMCO1000S SLIMCOM25 SMP53
> SHARP NEEDLES STY-131 STY131
> SHARP CARTRIDGES 131
> SONY MODELS PS-FL711 PSFL711 PS-LX22 PSLX22 PS-LX500 PSLX500 PS-LX22 PSLX22 PS-LX230 PSLX230 PS-LX430 PSLX430 PS-LX520 PSLX520 TTX-177 TTX177
> SONY CARTRTDGES VL-45G VL45G
> SYLVANIA MODELS FPD463
> TOSHIBA NEEDLES C-32M C32M N-32M N32M N-32D N32D
> TOSHIBA CARTRIDGES C-32M C32M
> ZENITH NEEDLES DT-45 DT45
