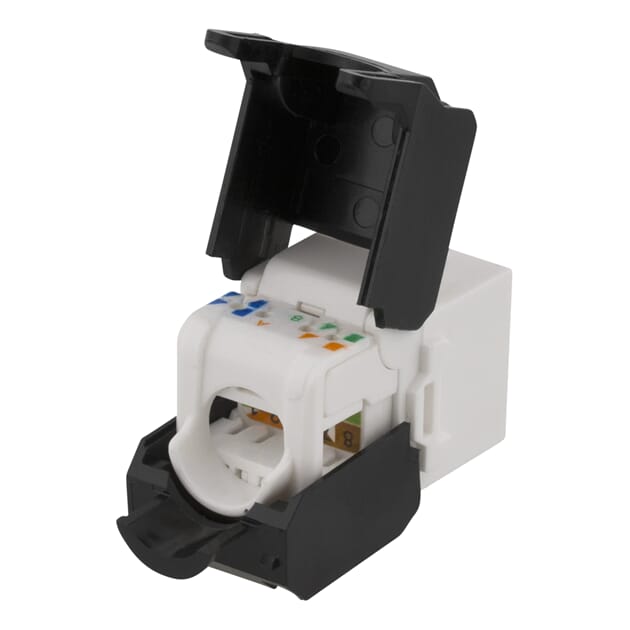

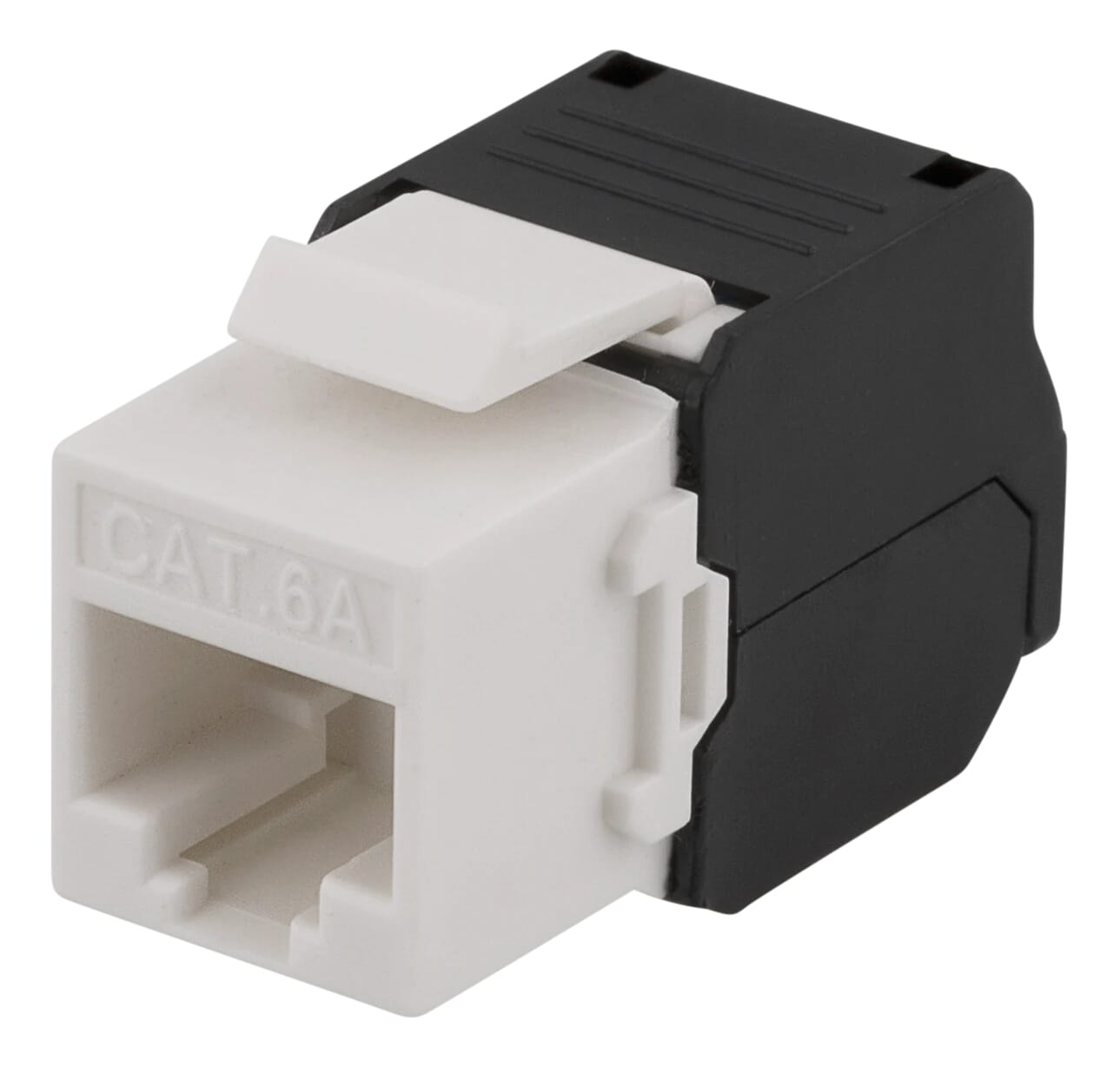

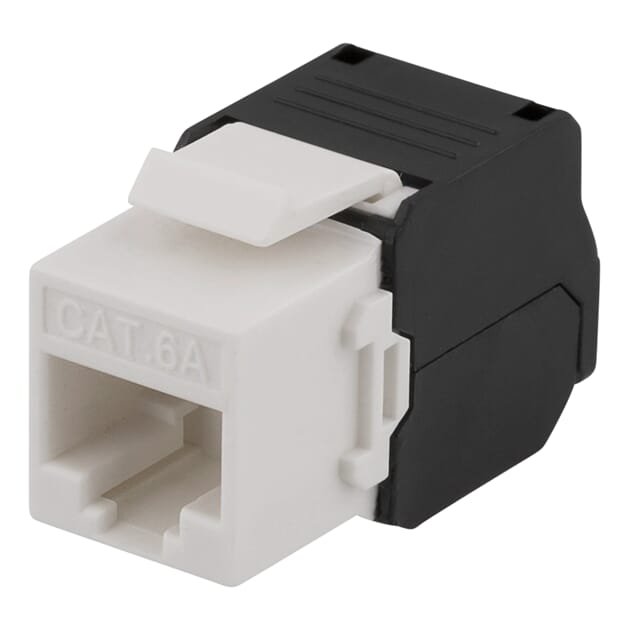

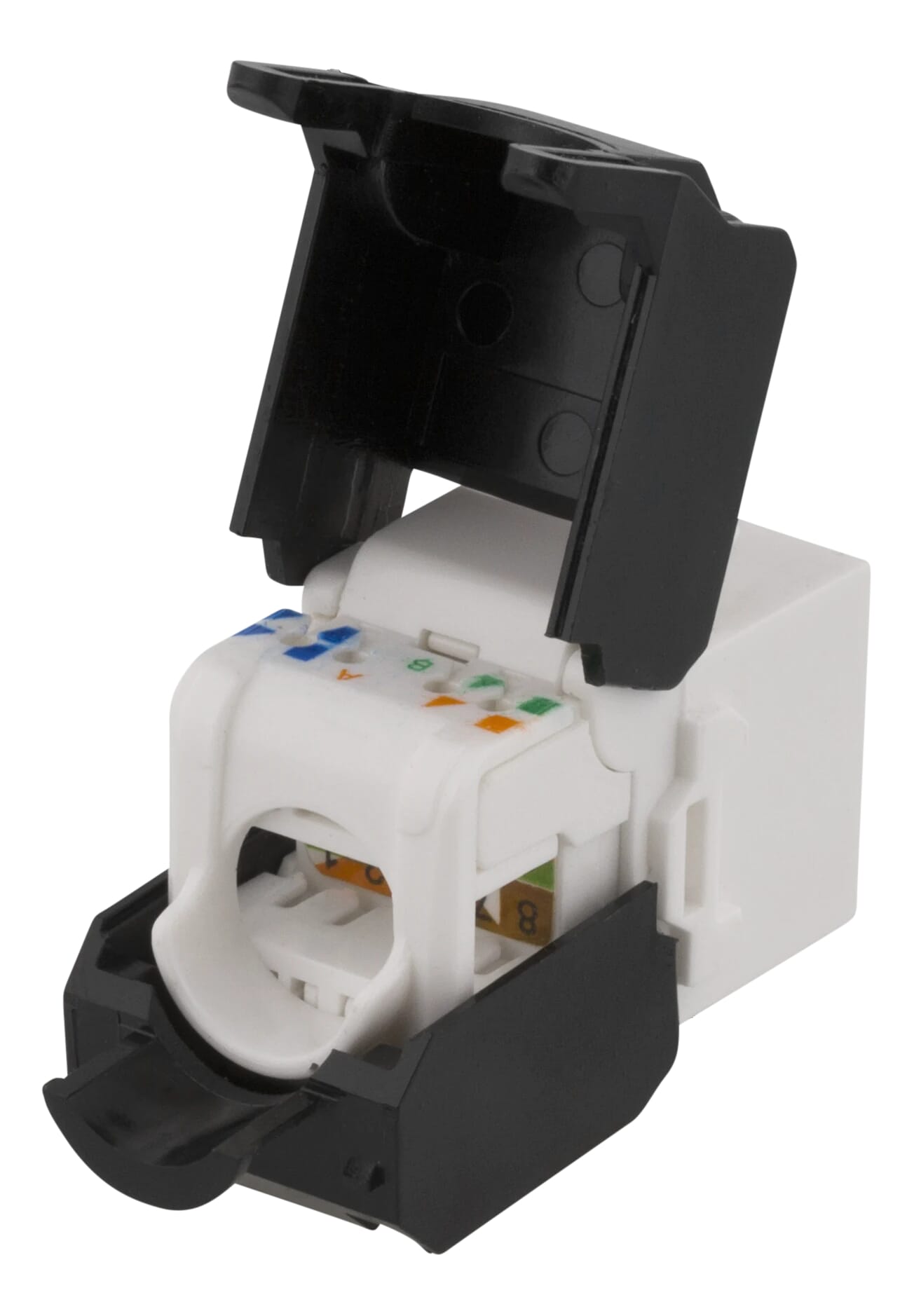

Cat6A Keystone jack, toolless clamp termination, plastic

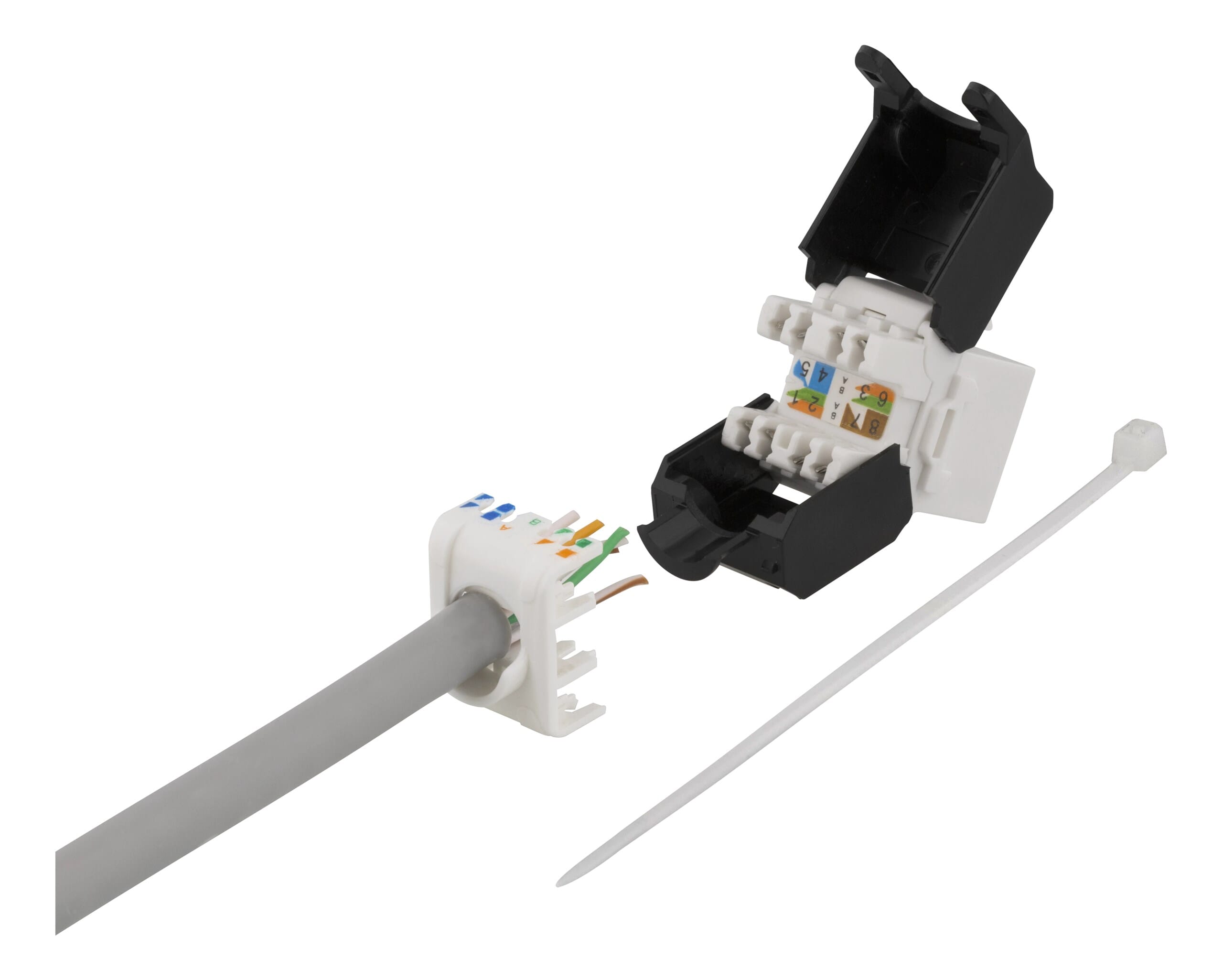

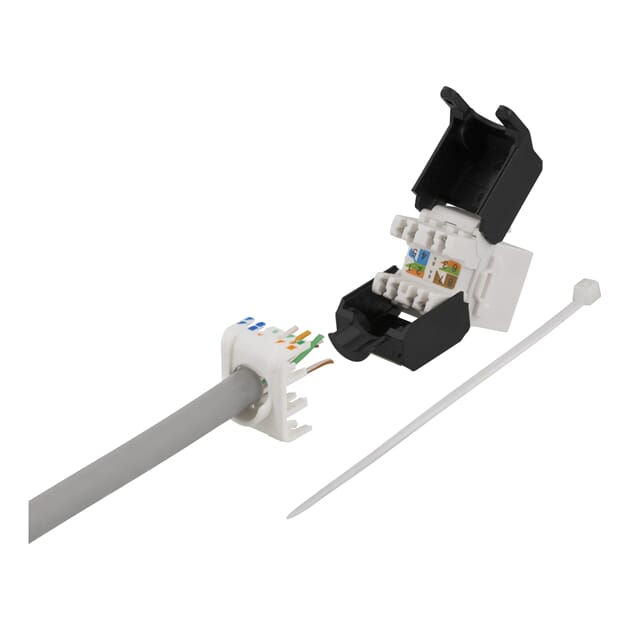

Just put the conductors in the color marked tracks and clamp the parts together, then it is terminated and ready.
Suits conductors between 22 and 25 AWG together with an outer diameter of up to 6mm.
Meets the Cat6 specification with 500MHz bandwidth and up to 10Gbps transfer rate.
Measurements (WxDxH): 16x39x21mm.
Cat6a
AWG 22-25
