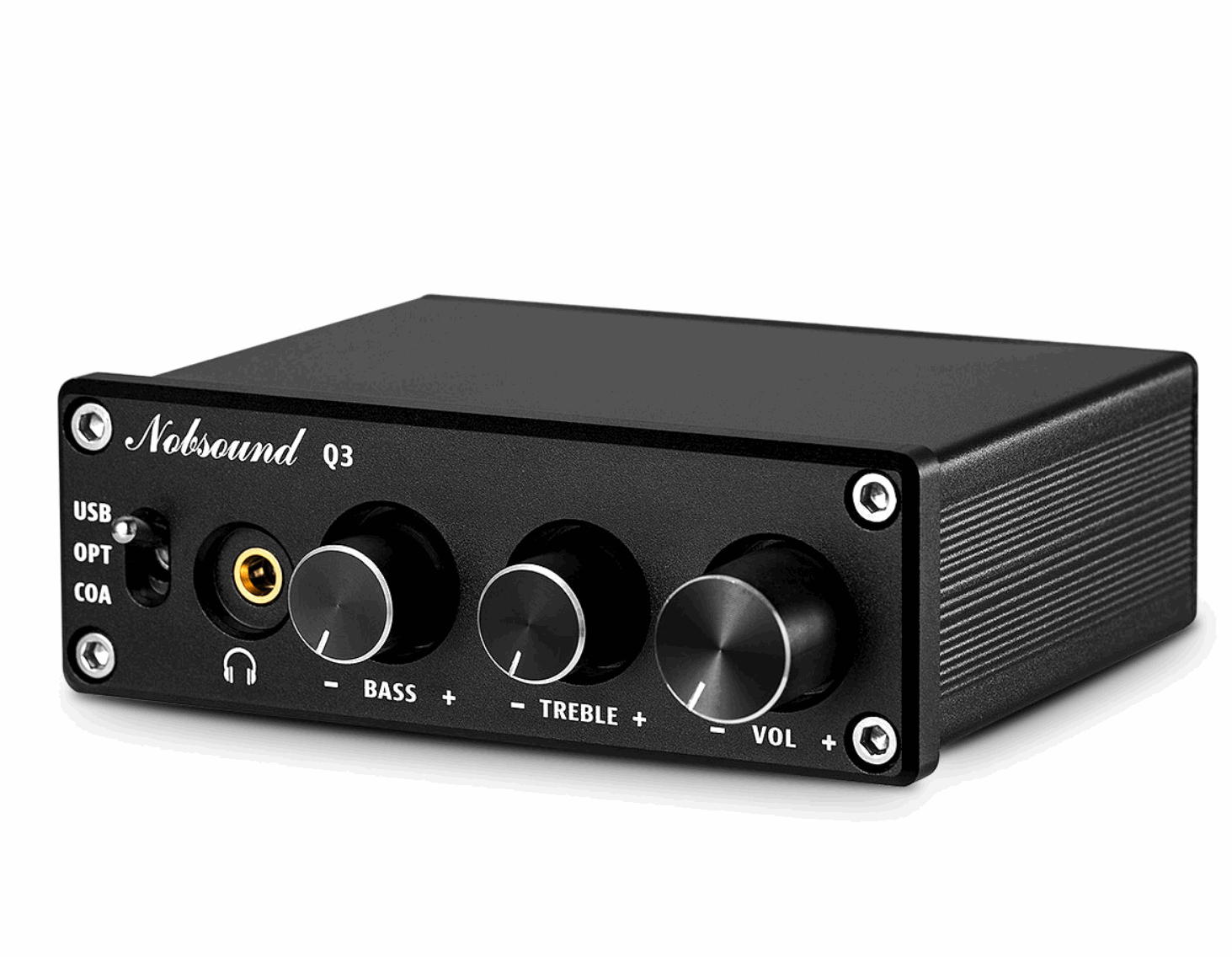

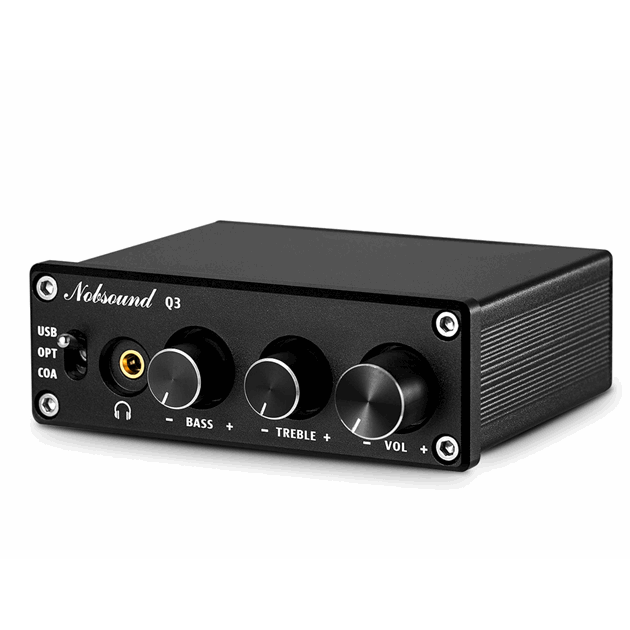

Nobsound Q3 Mini USB DAC
Liten og velspillende DAC fra velkjente NobSound.
Adopting high-end chip combination SA9023 USB chip+CS8412 DAC chip+97220 headphone amp chip to achieve better sound quality, and NE5532 op amp which uses analog circuit design to greatly improve treble and bass sound effects.

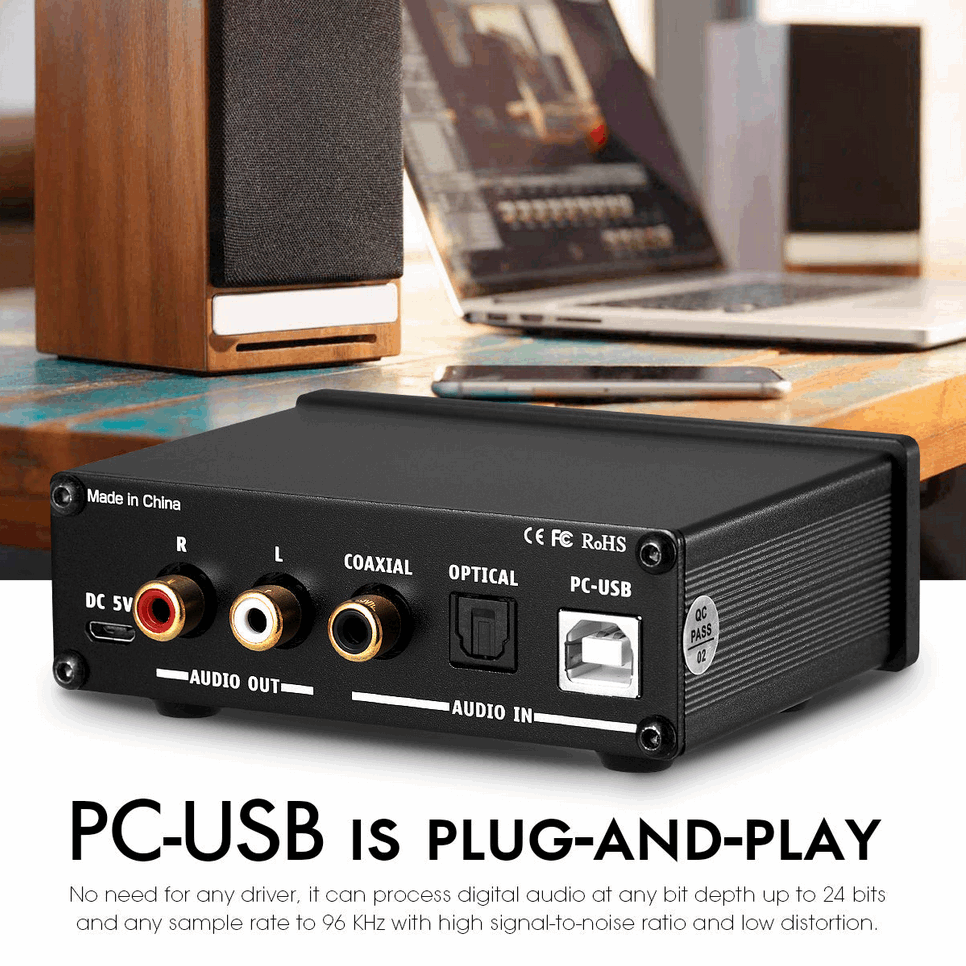

- PC-USB input
- sampling frequency: 96K/24Bit
- Optical/Coaxial input sampling frequency: 192K/24Bit
- Frequency range: 20Hz-20KHz(±3dB)
- PC-USB system supported: XP/W7/W8/W10/MAC/Linux
- Bass & Treble range: ±6dB
- SNR: =105dB
- THD: 0.01%
- RCA output level: 2.3V
- Headphone matching impedance: 16-200O
- Headphone max power output: 100mw (32O load)
- Working voltage: DC 5V

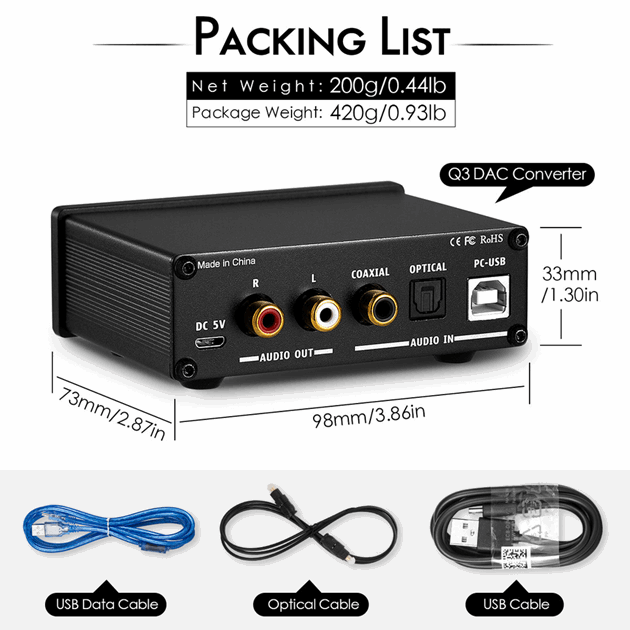

- Dimensions: (L*W*H)73*98*33 mm / 2.87*3.86*1.3 in
- Net weight: 200 g / 0.44 lb
