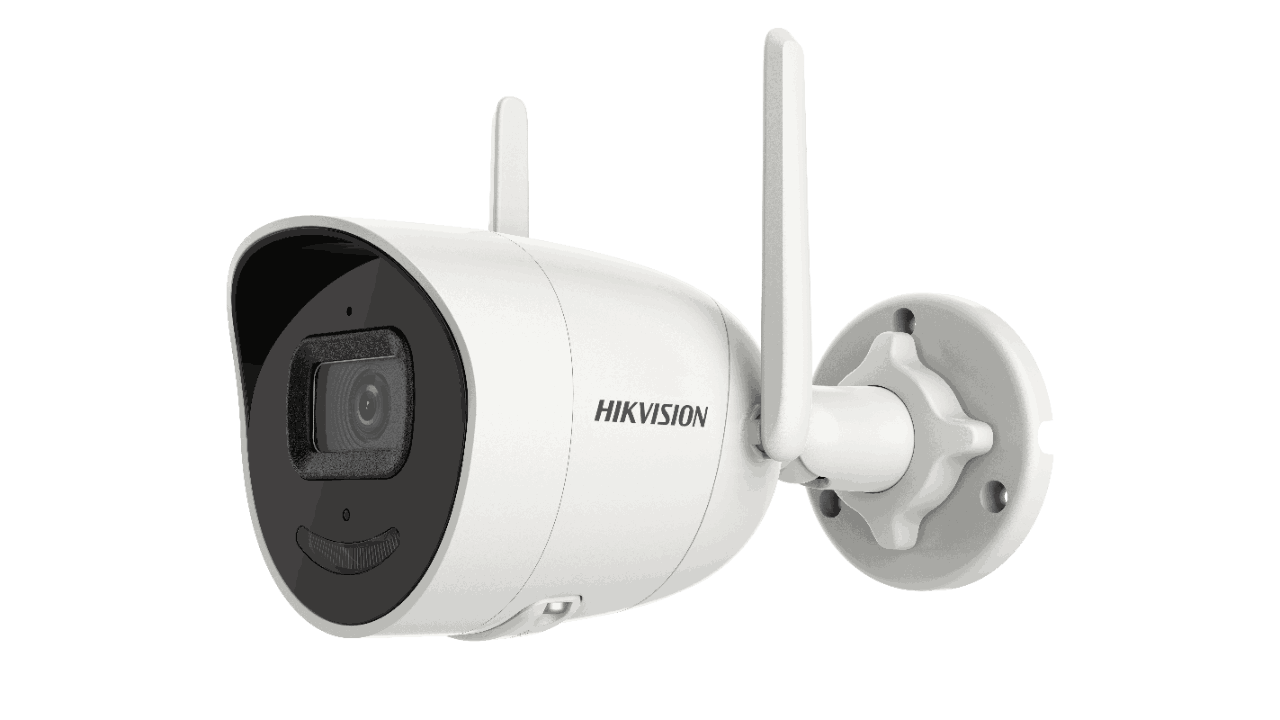

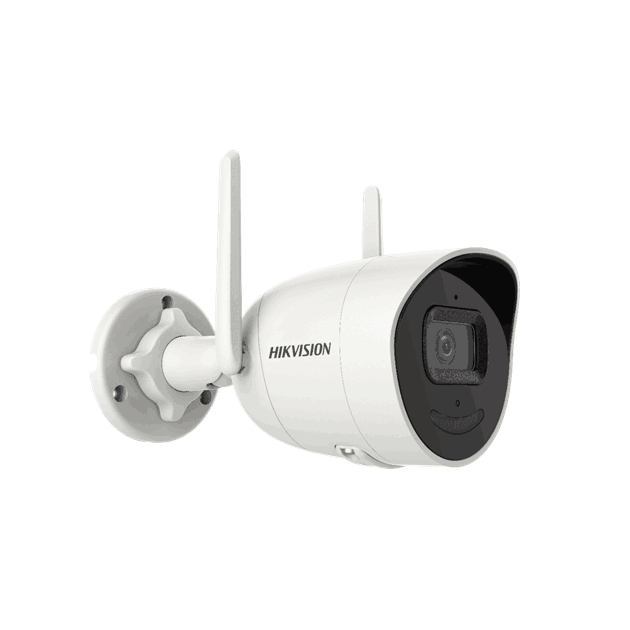

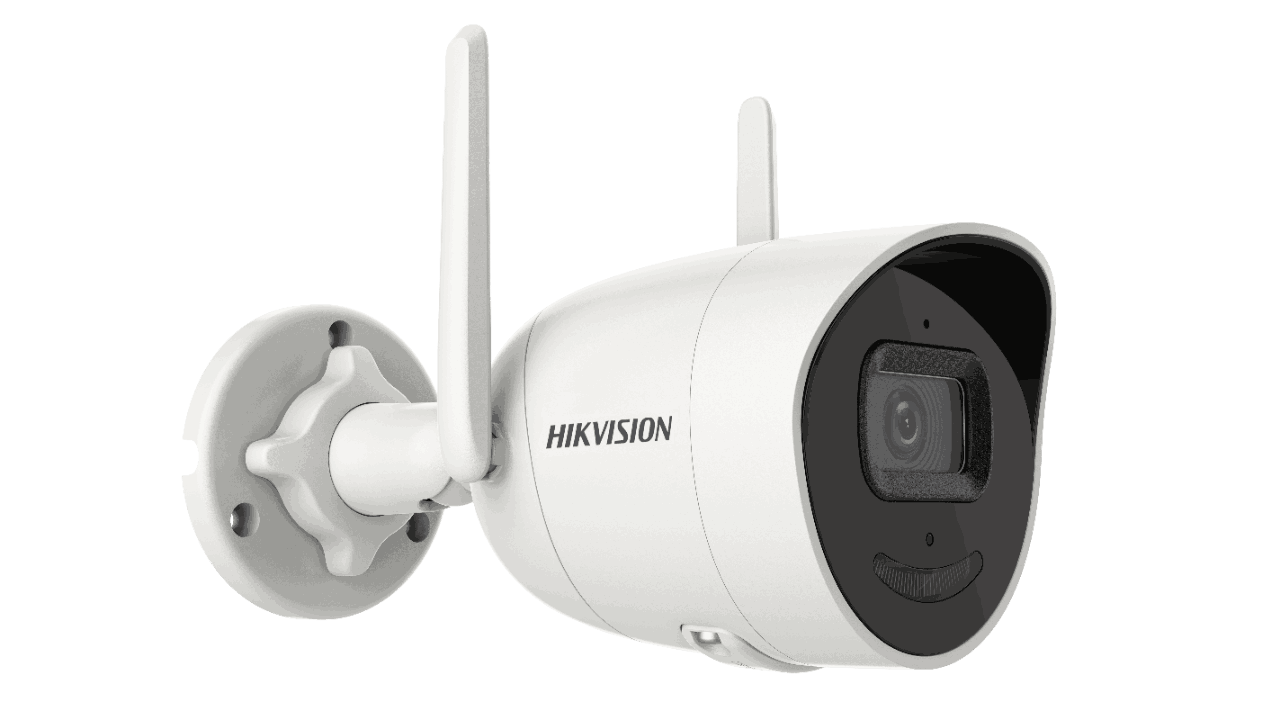

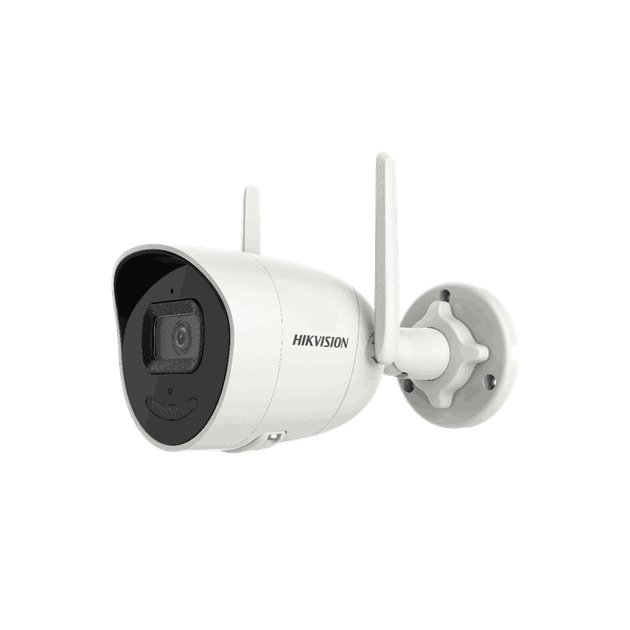

4MP Utendørs kamera m/wifi. Støtter minnekort opp til 256GB
- Camera
- Image Sensor1/2.7" Progressive Scan CMOS
- Min. IlluminationColor: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1/3s to 1/100,000s
- Slow ShutterYes
- Wide Dynamic Range120 dB
- Day & NightICR Cut
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens Type & FOV2.8 mm: horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114° 4 mm: horizontal FOV: 79°, vertical FOV 42°, diagonal FOV 93°
- ApertureF1.6
- Lens MountM12
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Smart Supplement LightYes
- Video
- Max. Resolution2560 × 1440
- Main Stream50Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
- Video Compression Main stream/Sub-stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseLine Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Stream TypeMain stream and sub-stream
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIISAPI, SDK
- ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP,R TCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/HostUp to 32 users 3 levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network StorageNAS(NFS, SMB/CIFS)
- ClientWired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200
- Web BrowserPlug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11; Plug-in free live view: Chrome 45.0+, Firefox 52.0+
- Image
- Day/Night SwitchDay/Night/Auto/Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Intelligent (Traditional Algorithm)
- Basic Event Motion detection, flashing alarm light output, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- General
- Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture, audiable warning
- Online UpgradeYes
- Firmware VersionV5.5.132
- General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter, flash log, pixel counter
- Software ResetYes
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F)
- Power Supply12 VDC ± 25%, reverse polarity protection
- Power Consumption and Current12 VDC, 0.6 A, 7.2 W
- Power InterfaceØ5.5 mm coaxial power plug
- MaterialFront cover: metal, back cover: plastic
- Camera Dimension175.6× 73.0 × 89.1 mm (6.91" × 2.87" × 3.51")
- Package Dimension260 × 125 × 125 mm (10.24" × 4.92" × 4.92")
- Camera Weight450 g (0.99 lb.)
- With Package Weight770 g (1.70 lb.)
- Approval
- EMC FCC ID (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- RF FCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014); KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17); ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Reach Regulation (EC) No 1907/2006
- ProtectionIngress protection: IP66 (IEC 60529-2013)
- Wi-Fi
- Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK
- Wi-Fi ProtocolIEEE802.11b, 802.11g, 802.11n
- Frequency Range2.4 GHz - 2.4835 GHz
- Channel Bandwidth 20/40 MHz
- Modulation802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
- Wireless RangeUp to 120 m (The performance varies based on actual environment)
