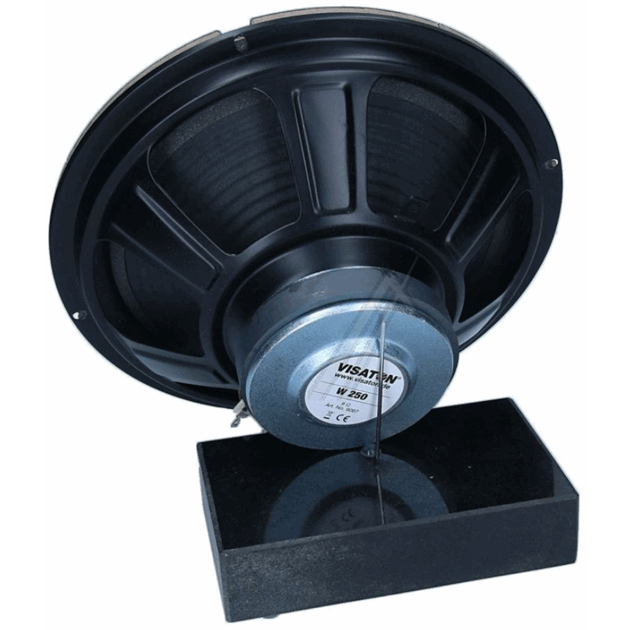

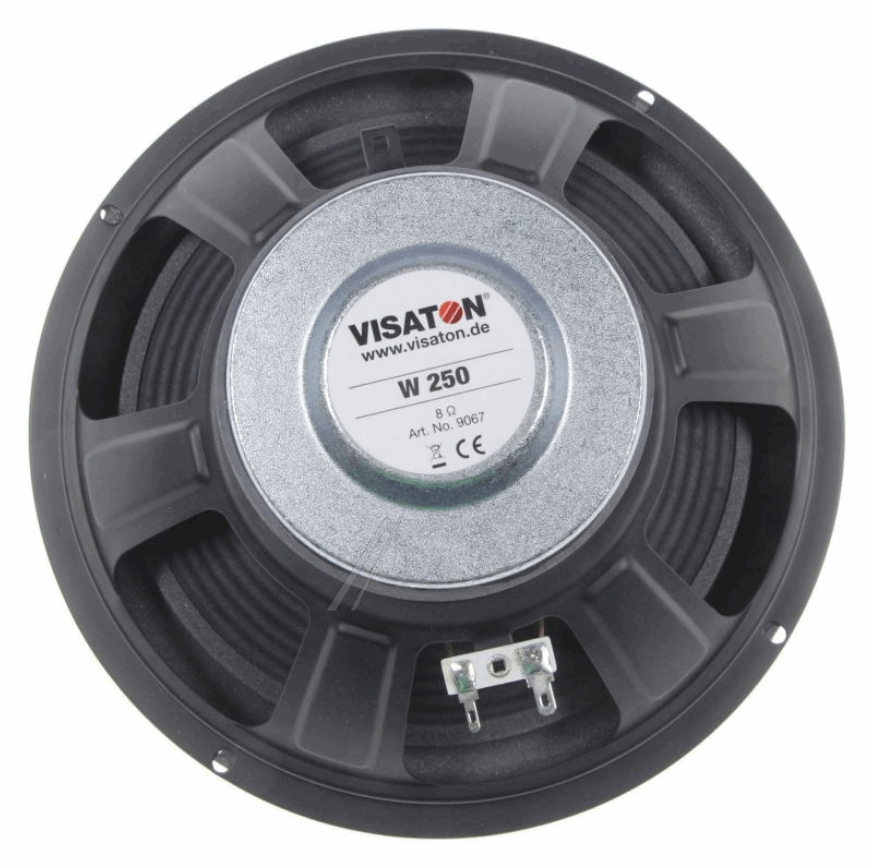

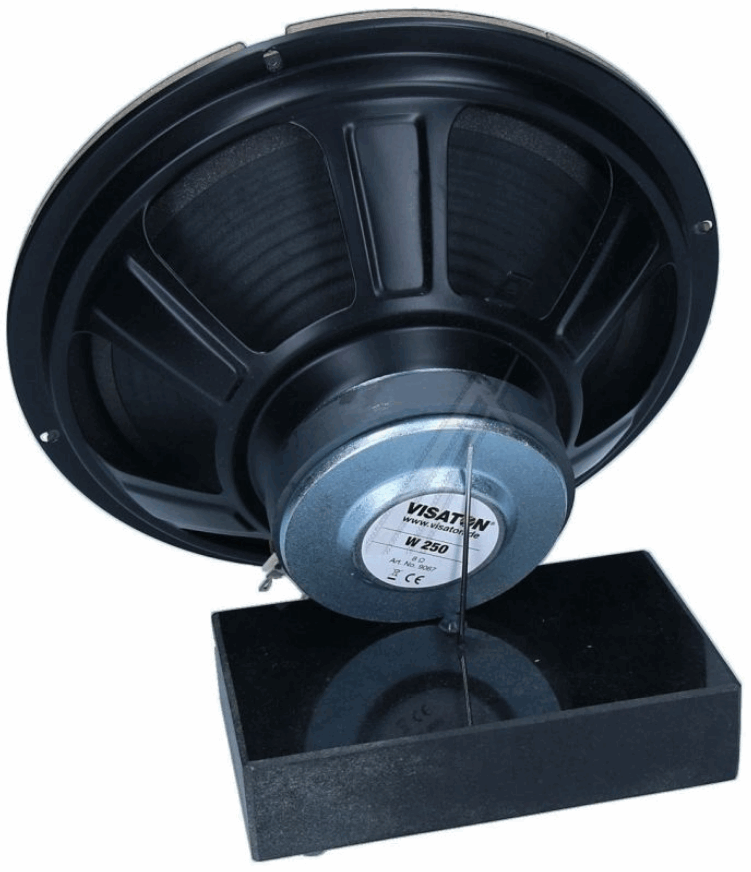

Visaton W250 Basselement 25cm / 8ohm

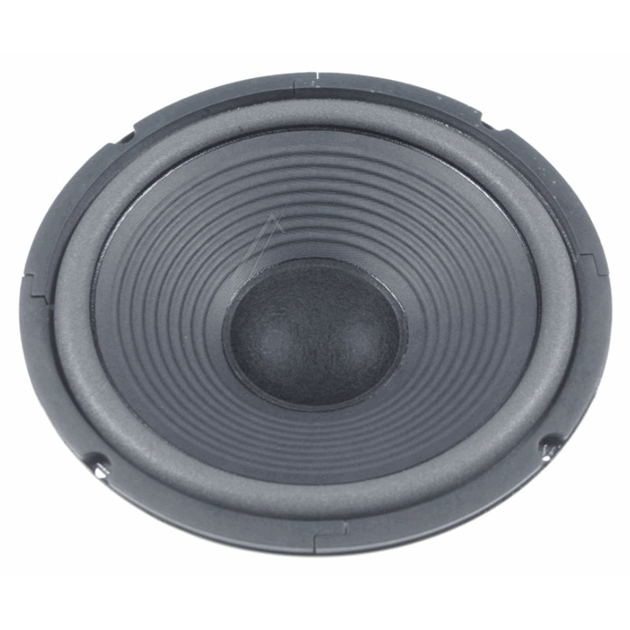

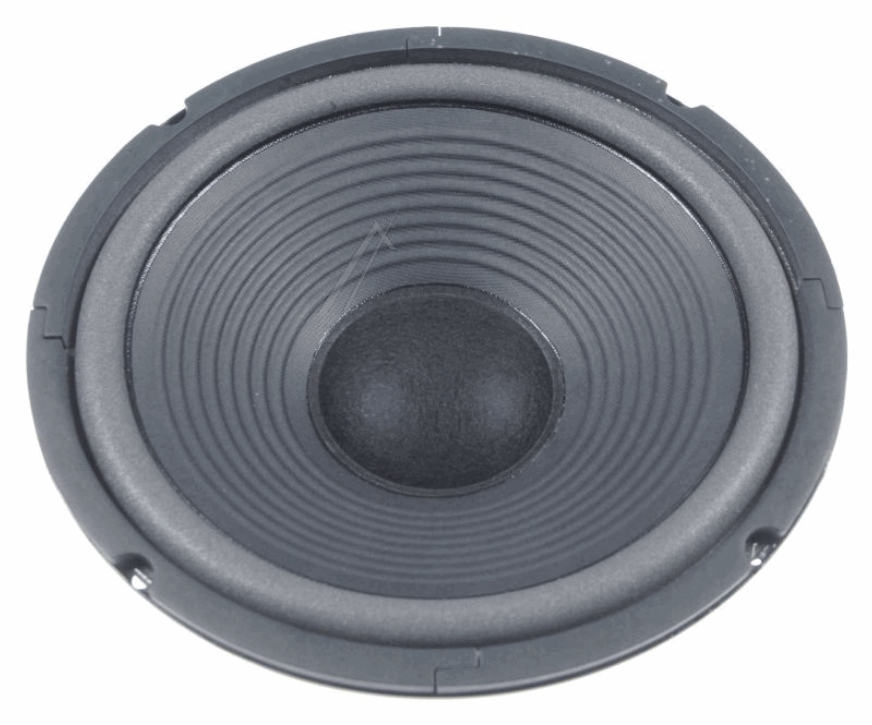

25 cm (10") woofer with air-dried cone and cone reinforcement. Front or rear mounting possible. Very good price/performance ratio and high power handling.
Recommended cabinets: Volume/Principle BR-Channel fb 30 l/bass reflex
BR 15.34 (11 cm lang) 46 Hz 50 l/bass reflex
BR 15.34 (9 cm lang) 38 Hz 70 l/bass reflex
BR 15.34 (8 cm lang) 38 Hz
| Nominell belastningsevne: |
90 W |
| Maksimal effekt: |
130 W |
| Impedans Z: |
8 O |
| Chassi type: |
Woofer |

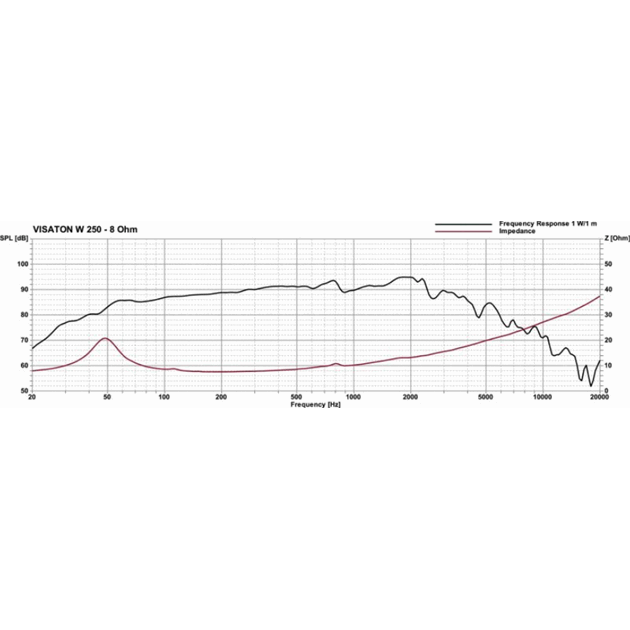

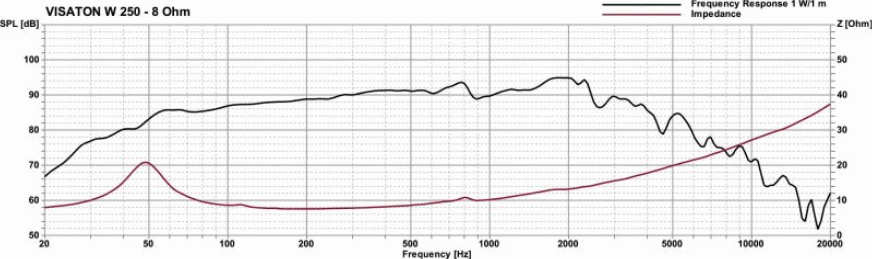

| Frekvens respons: |
fu - 6000 Hz | |
|
| Nedre frekvensgrense: |
Kabinett avhenging |
| Lydnivå/trykk, midten: |
90 dB |
| Ekskursjons grense +/-: |
10 mm |
| Resonans frekvens: |
45 Hz |
| Dybde: |
10,2 cm | |
|
| Membran diameter: |
250 mm |
| Utvendig diameter: |
25,5 cm |
| Pitch diameter: |
247 mm |
| Installasjons diameter: |
23,6 cm |
| Farge: |
Antrakitt | |
