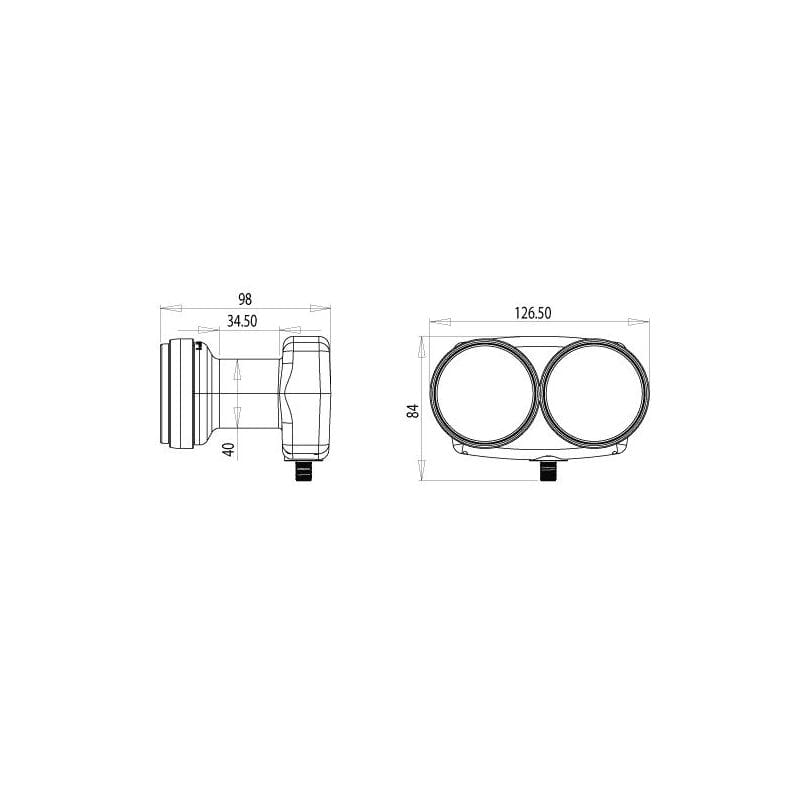

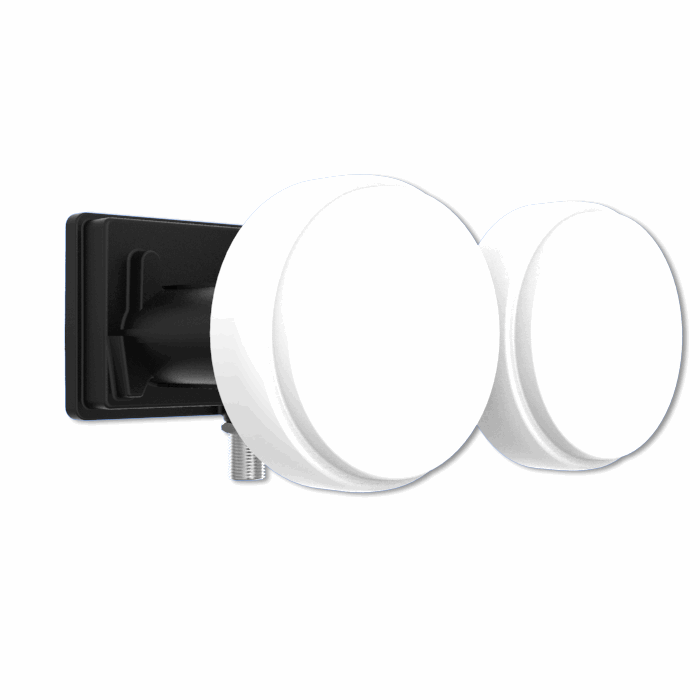

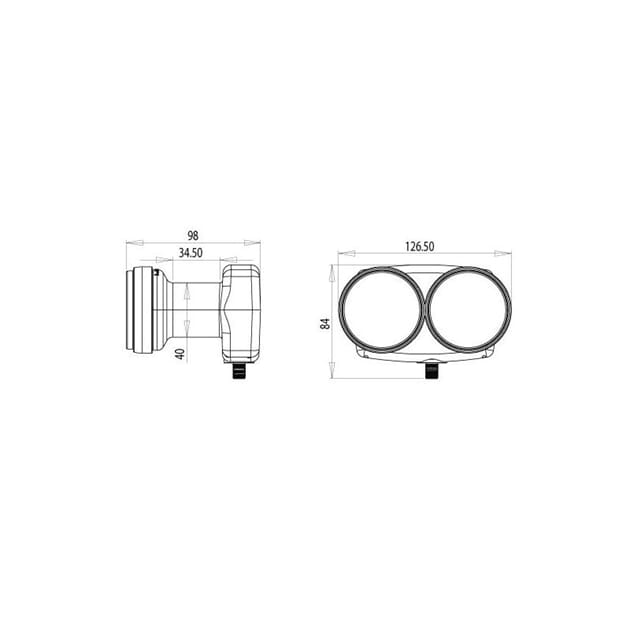

Technical specifications
|
| Low band input frequency range |
10.7 GHz ~ 11.7 GHz |
| Low band output frequency range |
950 MHz ~ 1950 MHz |
Low band LO frequency
|
9.75 GHz |
High band input frequency range
|
11.7 GHz ~ 12.75 GHz |
| High band output frequency range |
1100 MHz ~ 2150 MHz |
High band LO frequency
|
10.6 GHz |
Noise figure
|
0.2 dB typ. (0.7 dB max.) |
| LO temperature drift |
±3.0 MHz Max. |
LO initial accuracy @ 25 °C
|
±1.0 MHz Max. |
LO phase noise @ 10 kHz
|
-90 dBc / Hz max. |
Conversion gain
|
50 dB ~ 62 dB |
| Gain ripple (over 26 MHz bandwidth) |
±0.75 dB |
| Gain variation (over full band) |
±4 dB max. |
Image rejection
|
40 dB min. |
| 1 dB compression point (@ output) |
0.0 dBm min. |
| Control, Satellite A/B/C/D Selection |
DiSEqC 1.0 (Sat A* = Hotbird 13° East, Sat B = ASTRA 19.2° East)
* Default Satellite Reception |
| Cross polarization isolation |
22 dB min. |
Output VSWR
|
2.5 : 1 |
| In band spurious level |
-60 dBm max. |
Current consumption
|
150 mA max. @ 11 V ~ 20 V |
Operating temperature
|
-30 °C ~ +60 °C |
Output impedance
|
75 O |
Output connector type
|
F-Type (female) |
| Recommended Dish Size |
75 ~ 85 cm (F/D = 0.6) |
| Weight |
270 g |
