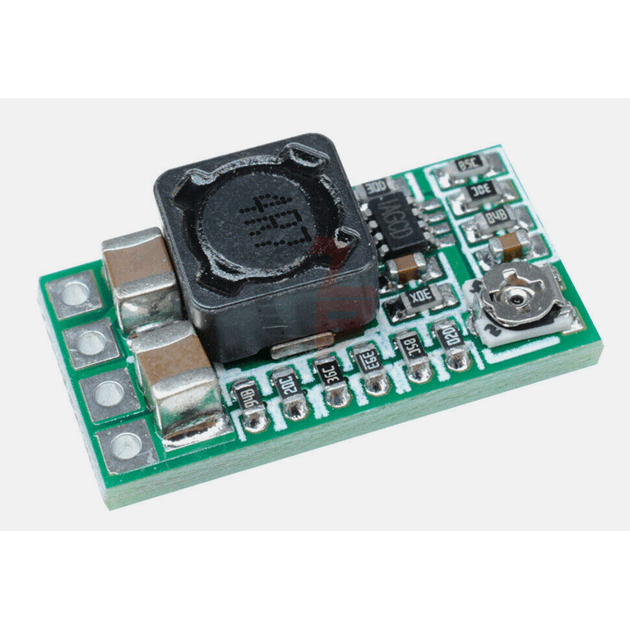

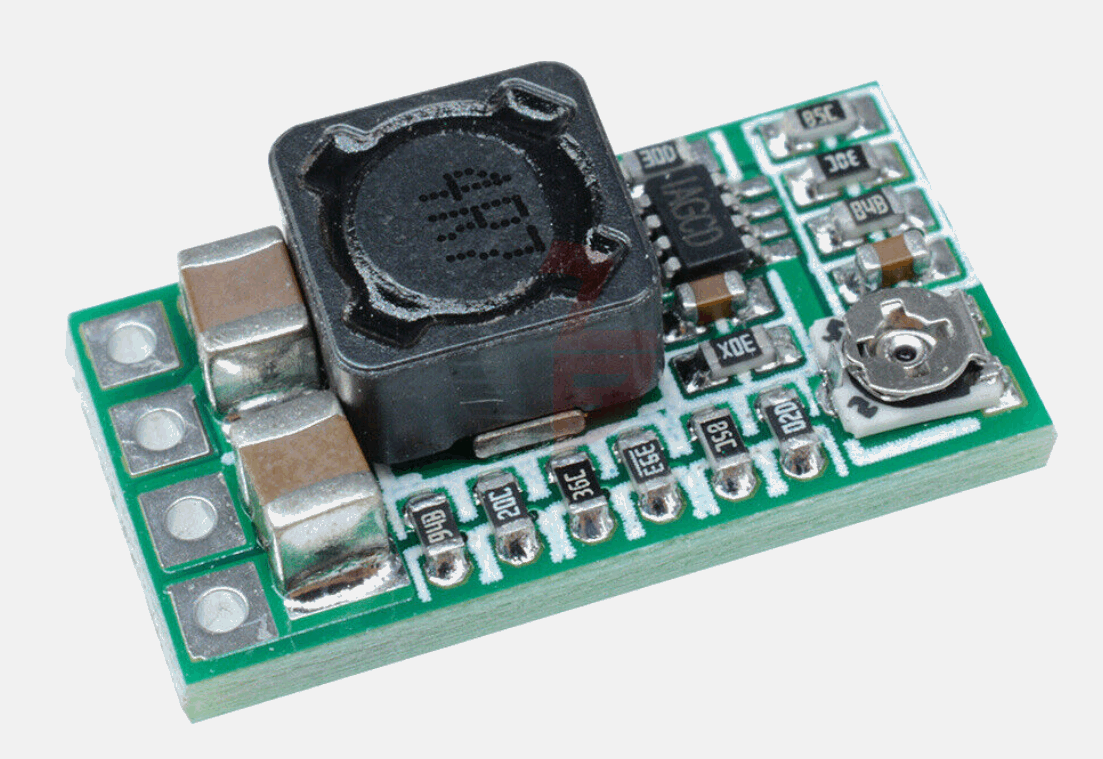

12-24V To 5V Step Down

12-24V To 5V Step Down

• Input Voltage:DC 4.5-24V
• Output Voltage: integration adjustable and fixed output,back side can choose fiexd output voltage
• Adjustable Range:0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
• Output Current:3A (max),actual testing input 12V output 1.5A
• Transform Efficiency:97.5%(max) (6.5 to 5V 0.7A)
• Switch Frequency:500KHz
• Output Ripple Wave:20mV (12V to 5V 3A) 20m band width
• Operating Voltage:-40 Celsius-85 Celsius
• Output Overvoltage Protection:no
• Static Current:0.85MA
• Load Adjust Rate:±1%
• Voltage Adjust Rate:±0.5%
• Dynamic Response Speed:5% 200uS
• Output Short Circuit Protection:yes
• Input Transposition Protection:no
• Enable Control:yes
• Connecting Type:soldering
• Input Way:soldering
• Output Way:soldering/pin
• Soldering Hole Space:2.54mm
