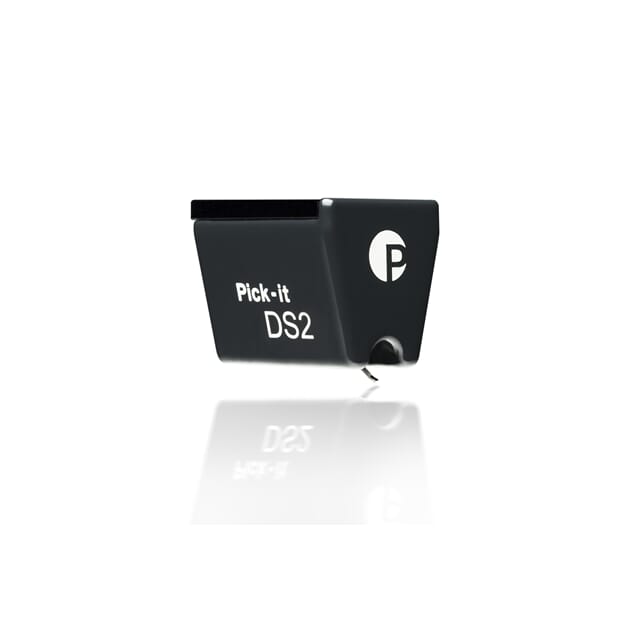

Pro-Ject Pick It DS2 (MC)

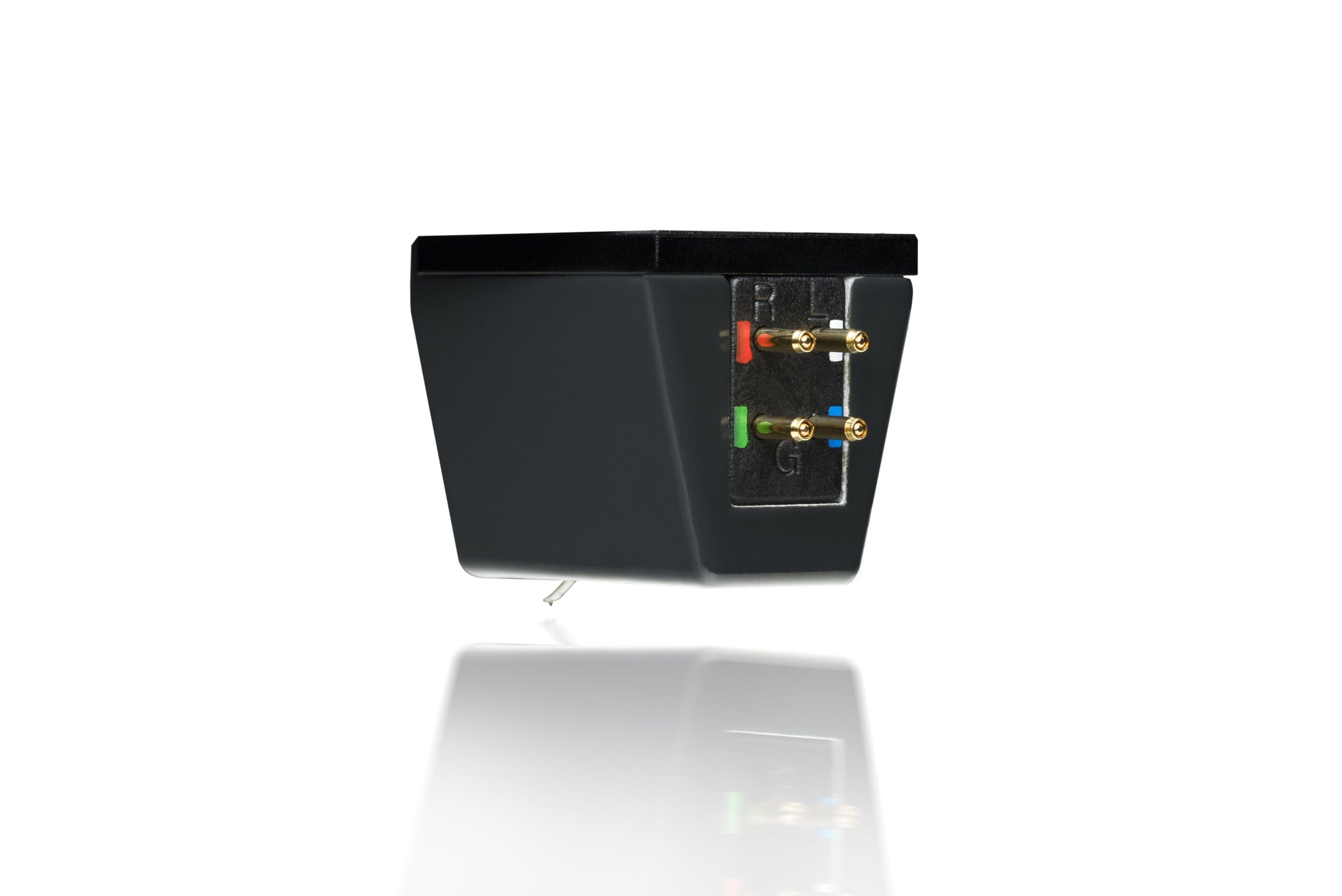

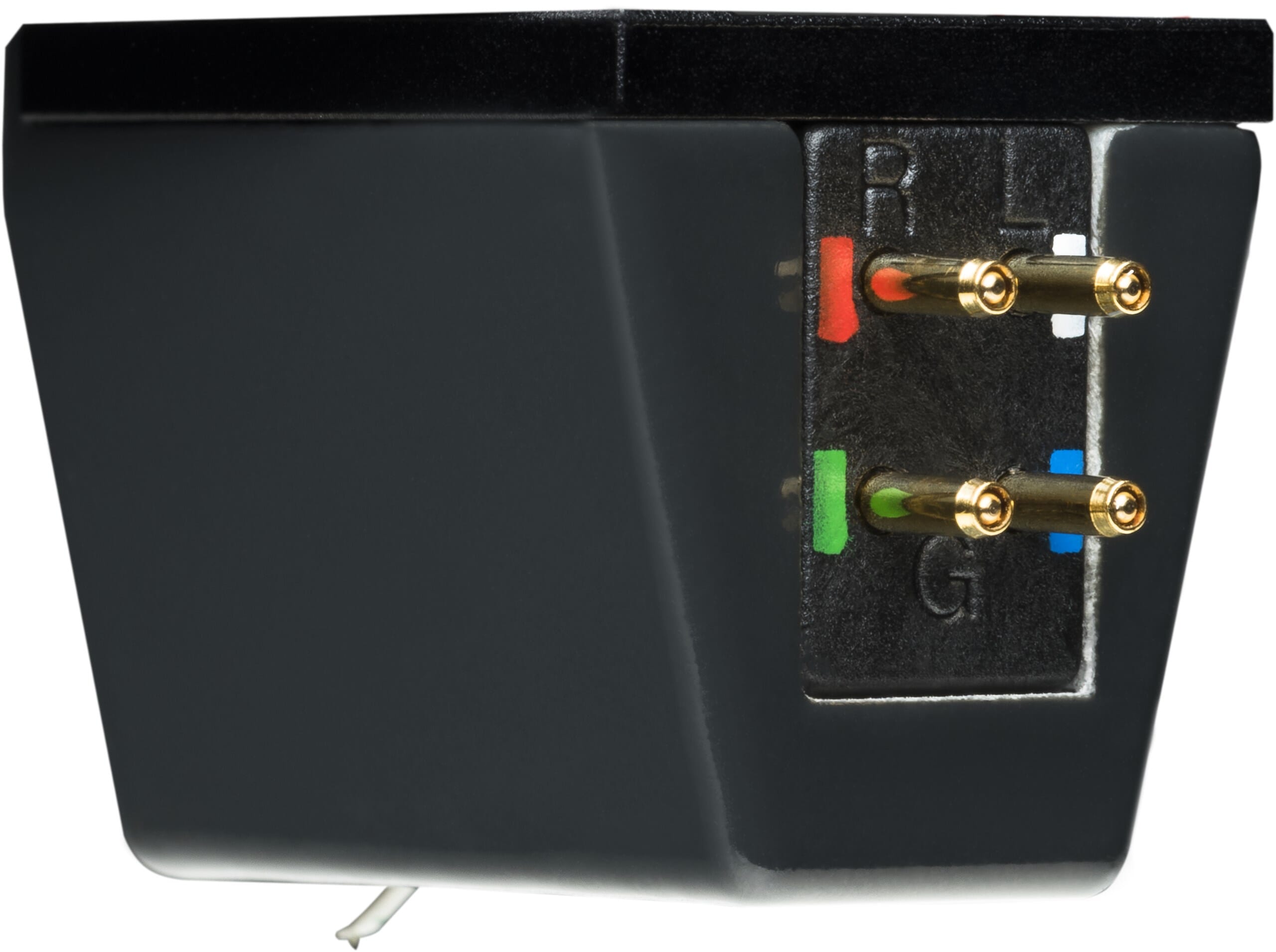

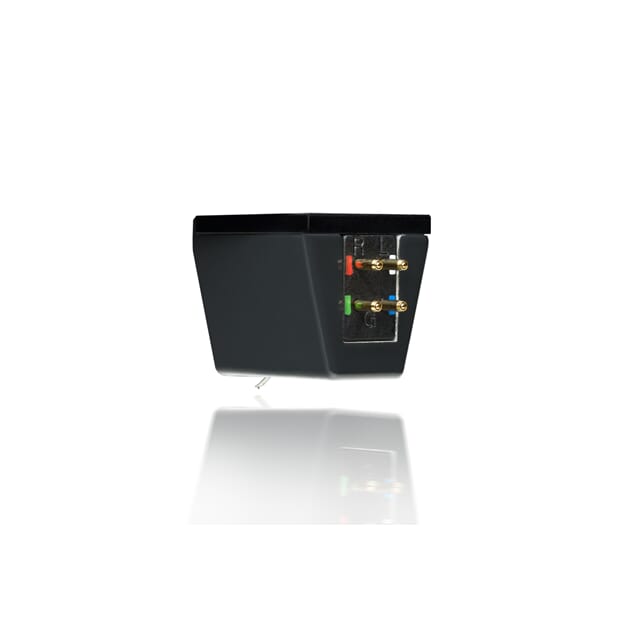

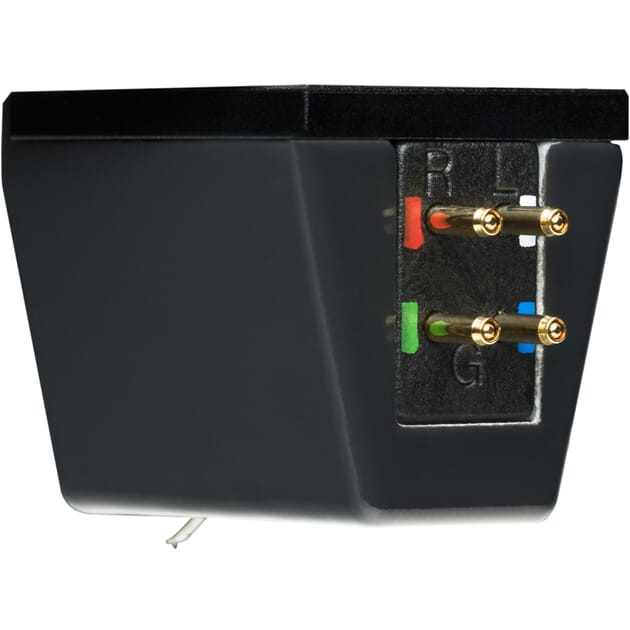

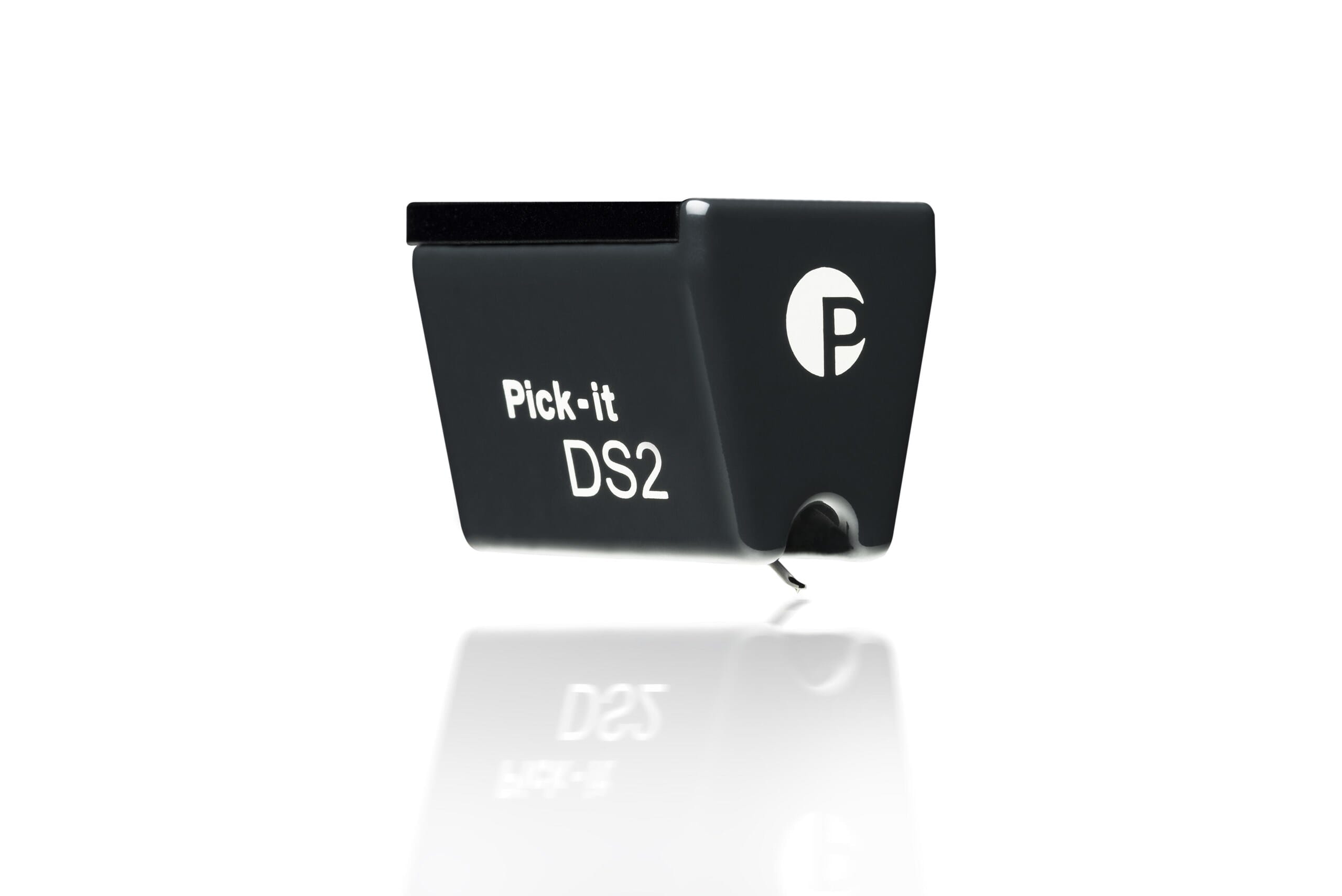

Pick it DS2 MC pickup

• Moving Coil principle
• Simple and fast mounting
• High fidelity
• Exceptionally lively
• Very detailed with low distortion
• Needs MC-compatible phono input
• Robust polyamid-body
• Resonance free thanks to laser-sintering-process
• Rigid mounting plate out of metal
• Threaded holes for simple mouting without nuts
• Optimum contact to headshell thanks to three-point pad

Technical Specifications

• Needle type Naked elliptical
• Weight 9 g
• Stylus tip radius 8/18 µm>
• Frequency Response 20 - 24.000 Hz
• Output Voltage 0.5 mV
• Channel separation 25dB @ 1kHz
• Compliance dynamic/lateral 14 µm/mN
• Tracking force range 2.0-2.5 g
• Recommended tracking force 2.2 g
• Tracking angle 20°
• Spool material Pure 4N Cu
• Recommended load resistance 20
