God og velkjent pickup med Microlinear stift

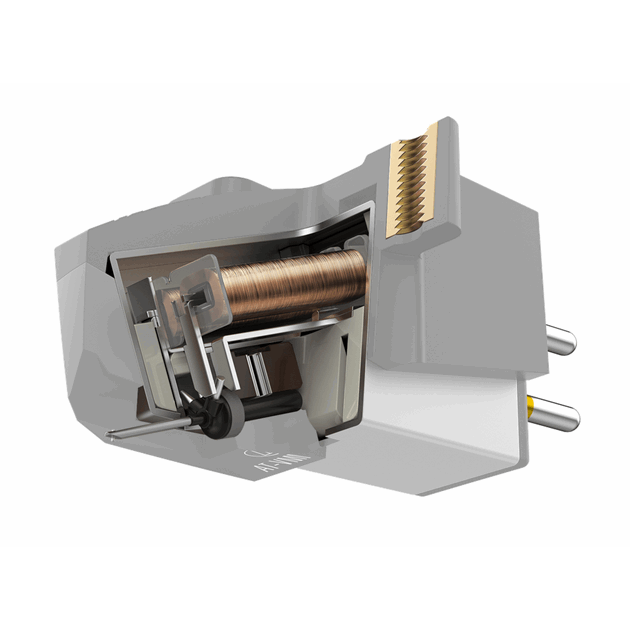

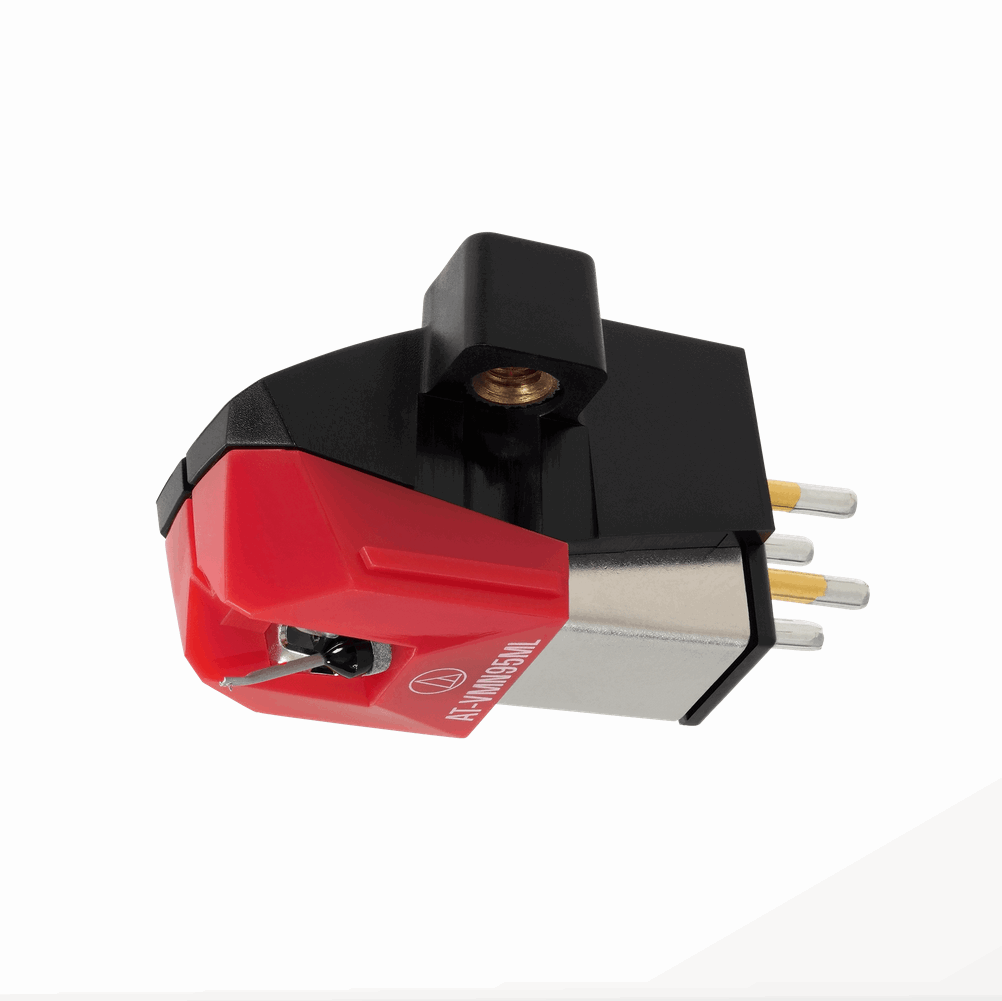

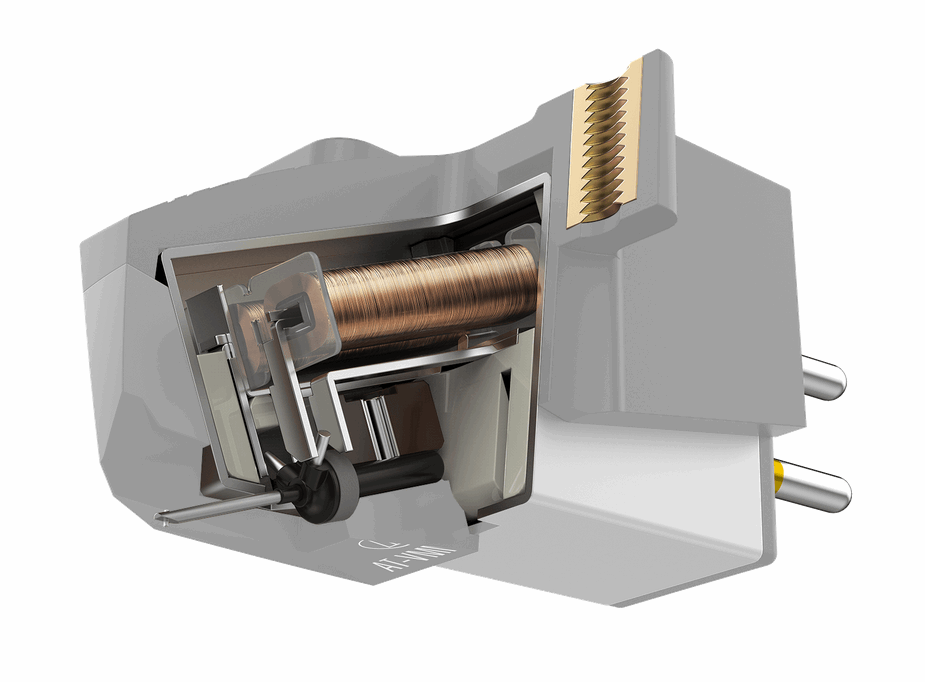

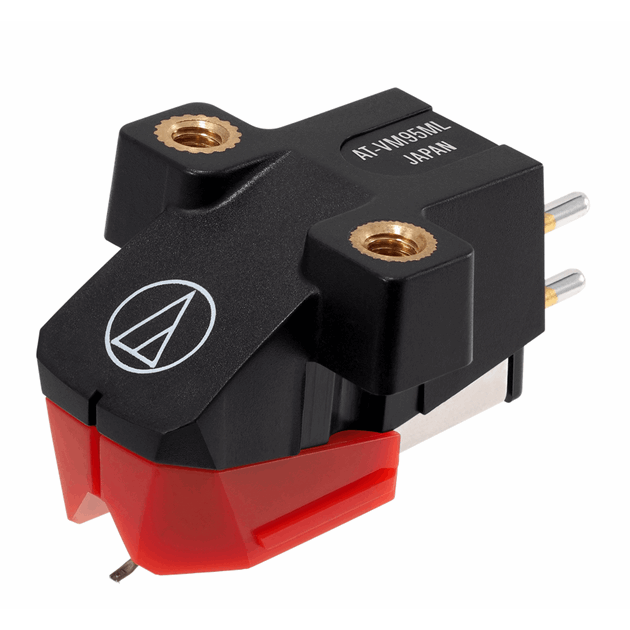

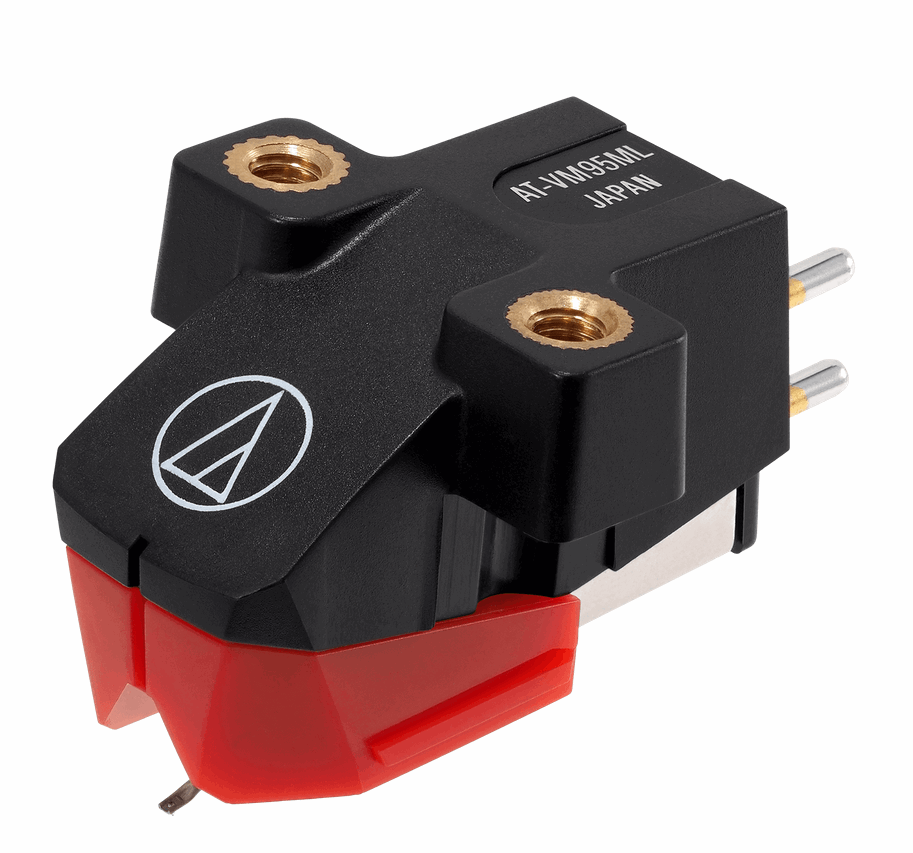

This VM95 Series cartridge with 2.2 x 0.12 mil Microlinear stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
|
Frequency Response |
20 - 25,000 Hz |
|
23 dB (1 kHz) |
|
23° |
|
1.8 to 2.2g (2.0g standard) |
|
Nude Square Shank |
Recommended Load Impedance |
47,000 O |
|
Coil Impedance |
3.3 kO (1 kHz) |
|
DC Resistance |
485 O |
|
Coil Inductance |
550 mH (1 kHz) |
|
Output Voltage |
3.5 mV (@ 1 kHz, 5 cm/sec) |
|
Output Channel Balance |
1.5 dB (1 kHz) |
|
Stylus Shape |
Microlinear |
|
Cantilever |
Aluminium Pipe |
|
Static Compliance |
20 x 10 – 6 cm / dyne |
|
Dynamic Compliance |
10 x 10 – 6 cm / dyne (100 Hz) |
|
Mounting |
1/2” centres |
|
6.1g |
|
Dimensions |
17.2 x 18.9 x 28.3 ( H x W x D mm) |
|
Accessories Included |
Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Non-magnetic screwdriver |
|
Model |
AT-VM95ML |
|
Recommended Load Capacitance |
100-200 pF |
|
Replacement Stylus |
AT-VMN95ML |
|
Stylus Size |
2.2 x 0.12 mil |
|
Type |
VM Stereo Dual Magnet |
|
Wire Used for Coil |
T.P. Copper |
