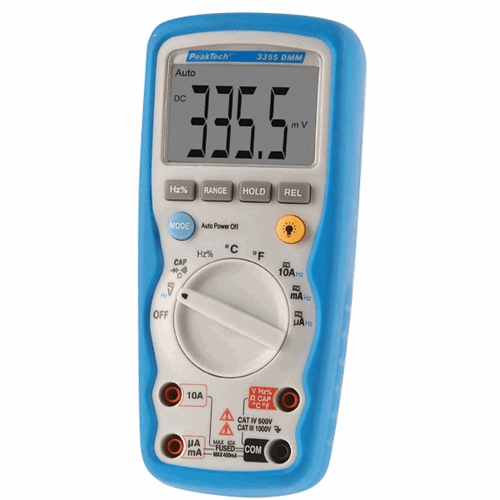

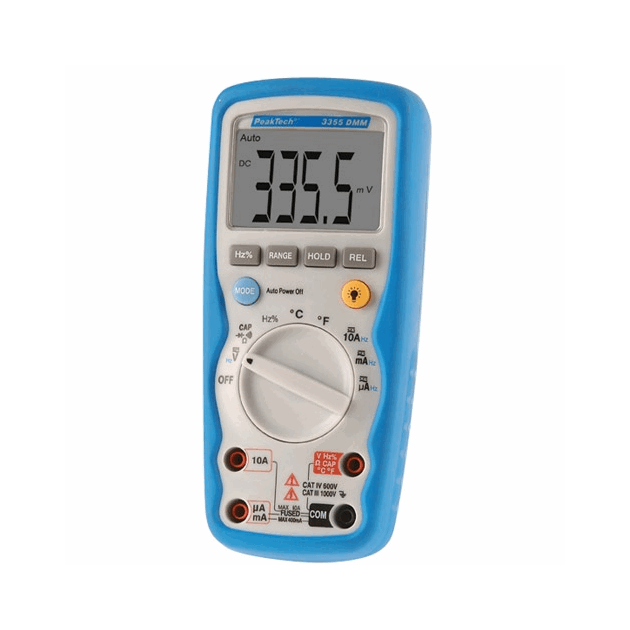

Professional digital multimeter with a large, easy-to-read and illuminated LCD display for electronics professionals, service technicians, trainees or hobby users. The automatic measuring range selection ensures user-friendly operation, only the measuring function has to be selected, but not the exact measuring range. In addition to the extensive measurement functions for voltage, current, capacity, frequency, temperature and resistance, this model has a continuity test with an acoustic signal and the possibility of performing diode tests. Special protection is guaranteed by the housing, which is provided with a sprayed-on rubber coating and is protected against fall damage. In addition, the housing has an IP 67 protection class, which means that the device is dust and waterproofed. The user safety is guaranteed via the CAT III 1000V overvoltage category.



Basic Accuracy DC:	+/- 0,5%
Capacitance max.:	200 µF
Digital counts:	4.000
GS - Tested safety:	¦
Ingress protection:	IP 67
Over voltage category:	CAT III 1000 V, CAT IV 600 V
Range selection:	Auto
V DC max.:	1000V
A AC max.:	10A, 20 A
Hz max.:	10 MHz
OHM max.:	40 M?
Temp. max.:	760 °C
Temp. min.:	-20 °C
mA DC max.:	400 mA
mV DC max.:	400 mV
µA DC max.:	4000 µA
V AC max.:	1000V
mV AC max.:	400 mV
A DC max.:	10A, 20A
mA AC max.:	400 mA
µA AC max.:	4000 µA



3 3/4 digit, 27 mm backlit LCD display; Max. Display: 4000

IP67 dust and waterproof

Relative value measurement function

Continuity test and diode test

Data hold

Automatic and manual range selection

Automatic shutdown

Safety: TÜV / GS, EN 61010-1; CAT III 1000 V / CAT IV 600 V

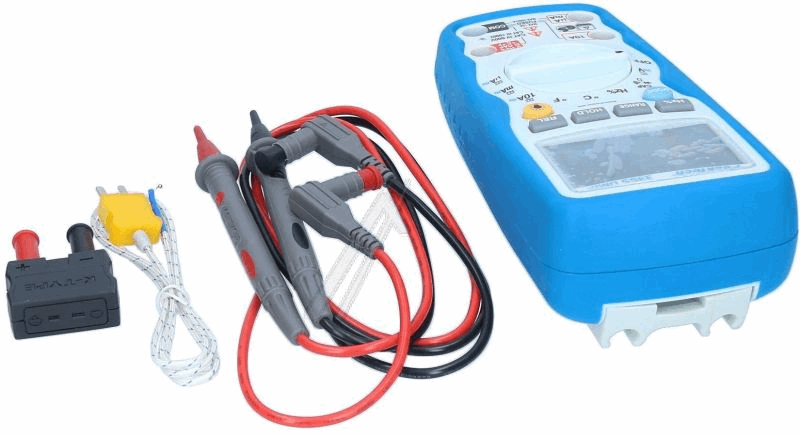

Accessories: test leads, type K temperature wire sensor, bag, battery and manual
