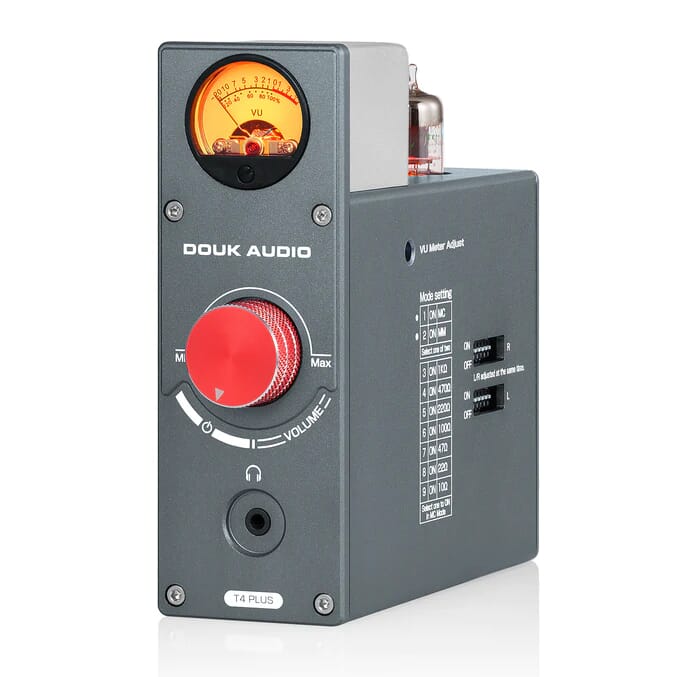

Douk Audio T4 PLUS RIAA

Godt rørbasert RIAA trinn med hodetelefonforsterker fra velkjente Douk Audio.

• MM/MC
• VU-meter
• Volumkontroll
• Hodetelefonutgang

• Model: T4 PLUS

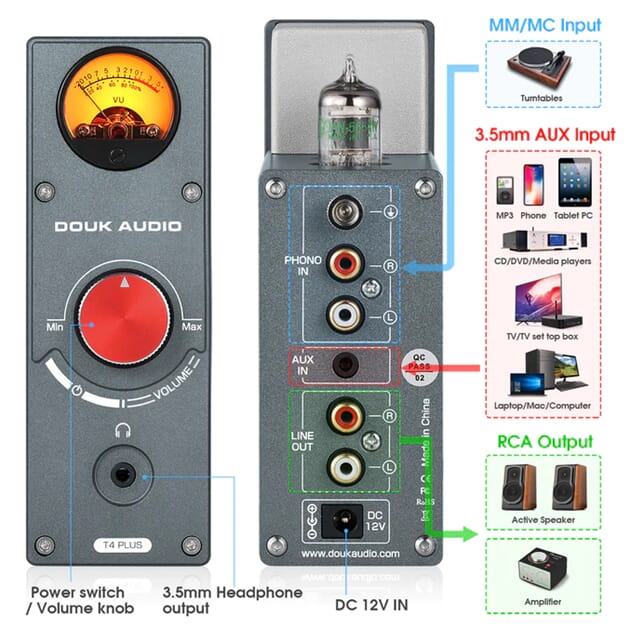

• Audio input: MM phono/turntable / 3.5mm AUX

• Audio output: stereo L/R RCA / 3.5mm headphone jack

• Max output power of headphone jack: 150mW@32O

• Matched headphone impedance: 32-300O

• AUX IN
  AUX input level: 0.775V
  RCA max output level: 1.5V
  Frequency response: 20Hz-20KHz (±0.3dB)
  S/N ratio: =110dB
  THD: 0.2%

• Phono IN
  Phono input level: 0.005V
  RCA max output level: 300mV (MM) / 3V (MC)
  Frequency response: conforms to RIAA characteristics (±3dB)
  S/N ratio: 71dB
  THD: 0.8%

• Working voltage: DC 12V

• Dimensions(W*D*H): 50*137*146mm / 1.97*5.39*5.75in

• Package dimensions(W*D*H): 300*230*65mm / 11.81*9.06*2.56in

• Net weight: 640g / 1.41lb

• Package weight: 1000g / 2.20lb

• 1*T4 PLUS Preamp

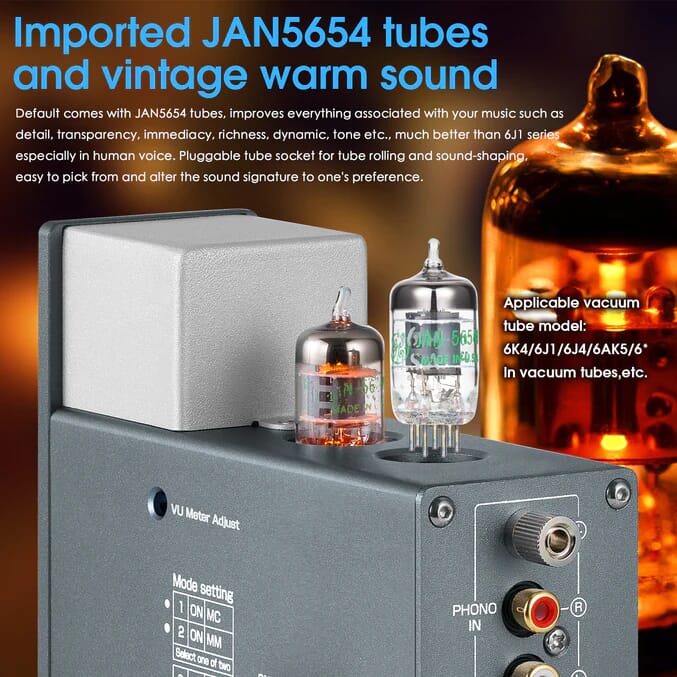

• 2*JAN5654 Vacuum Tube

• 1*DC 12V Power Adapter

• 1*3.5mm to RCA Cable
