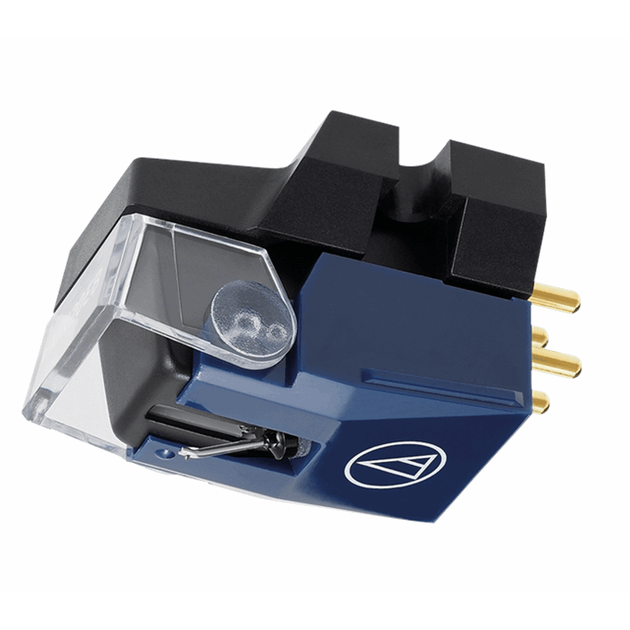

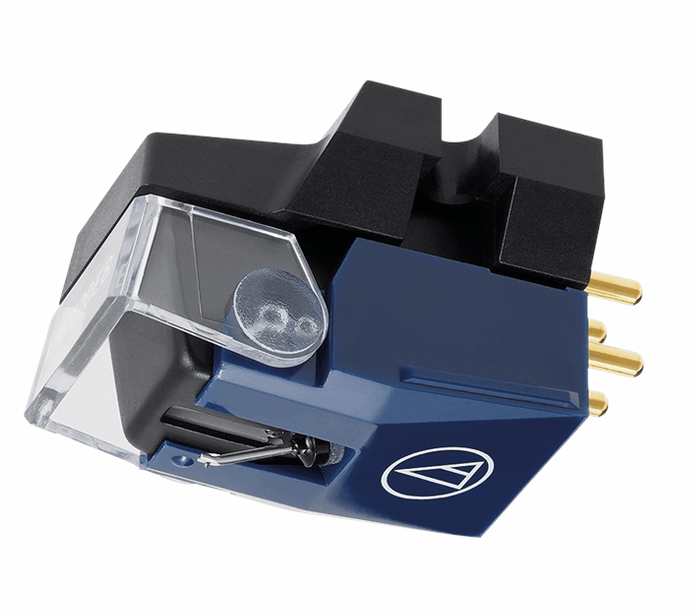

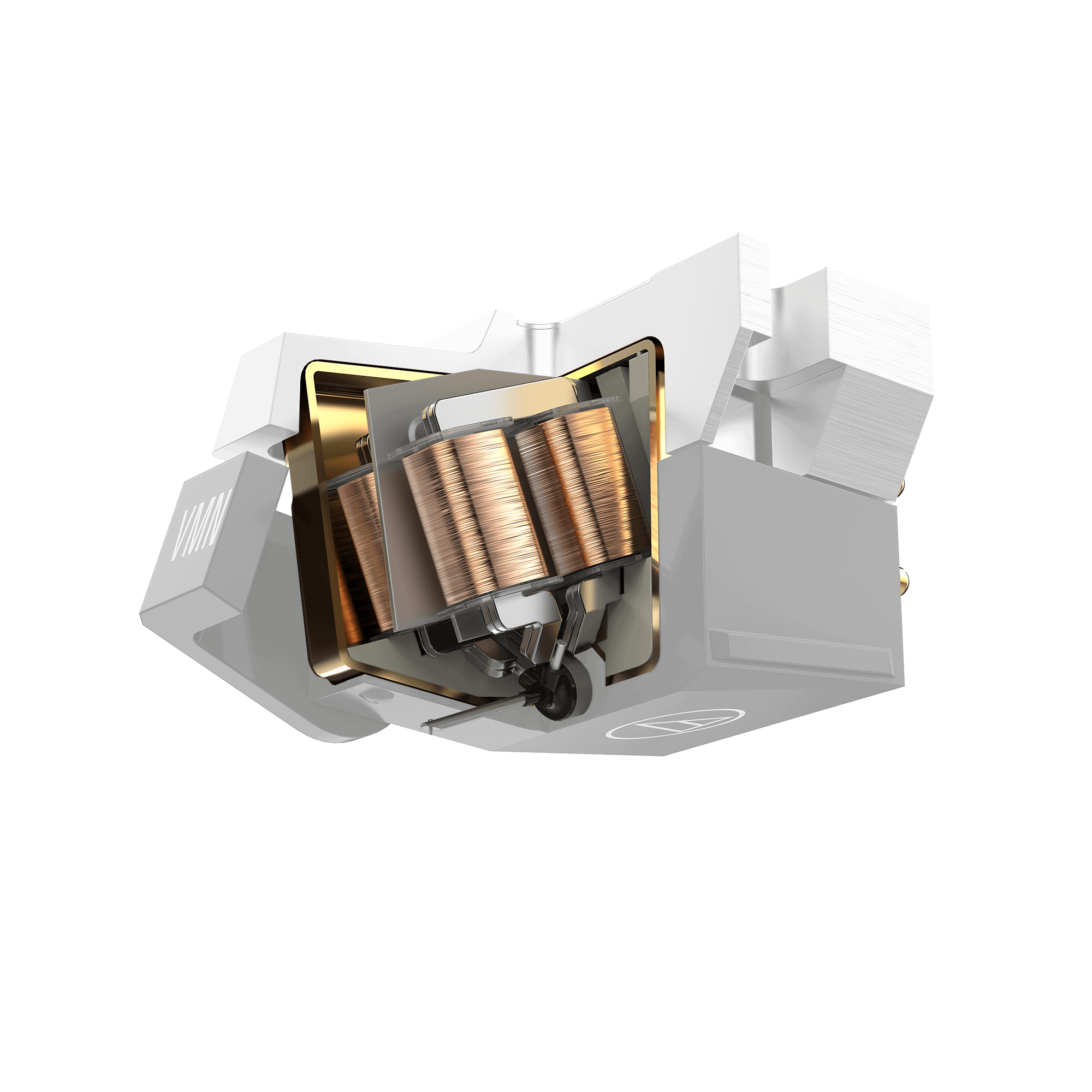

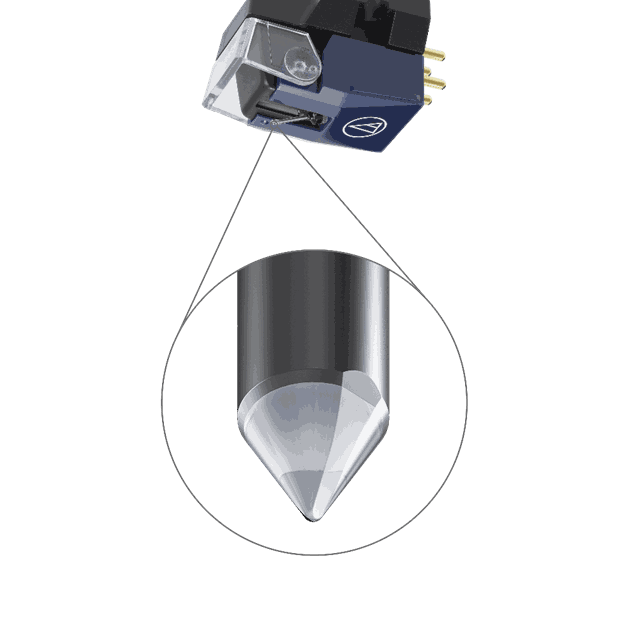

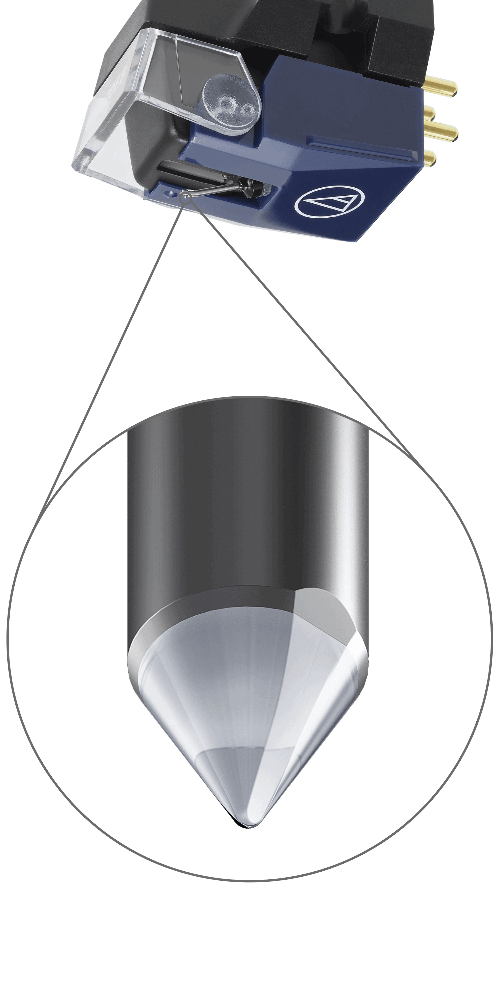

The VM520EB is part of the 500 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware.
Cartridge & Stylus |
Frequency Response |
20 - 23,000Hz |
Channel Separation |
27dB (1kHz) |
Vertical Tracking Angle |
23° |
Vertical Tracking Force |
1.8 to 2.2g (2.0g standard) |
Stylus Construction |
Bonded Round Shank |
