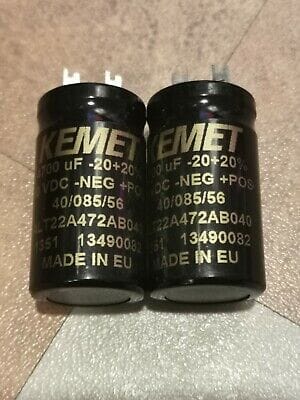

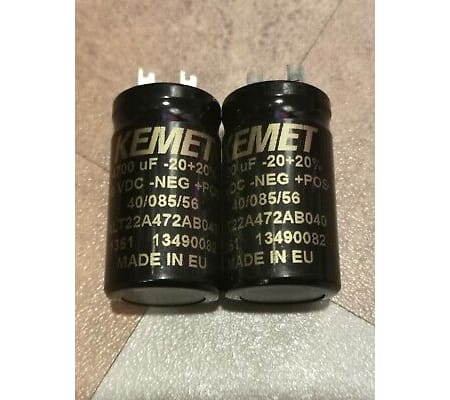

KEMET 4700µF 63V, Snap-in
| Capacitance |
4700µF |
| Voltage |
63V dc |
| Mounting Type |
Snap-In |
| Technology |
Aluminium Electrolytic |
| Dimensions |
25 Dia. x 40mm |
| Height |
40mm |
| Minimum Operating Temperature |
-40°C |
| Diameter |
25mm |
| Maximum Operating Temperature |
+85°C |
| Lead Pitch |
10mm |
| Lifetime |
16000h |
| Leakage Current |
1.777 mA |
| Polarised |
Polar |
| Ripple Current |
5A |
| Series |
ALC70 |
| Tolerance |
±20% |
| Equivalent Series Resistance |
89mO |
Maximum capacitance capability in a smaller size
Long life, up to 18,000 hours at +85°C (VR, IR applied)
High ripple current
Excellent surge voltage capability
PET sleeve
